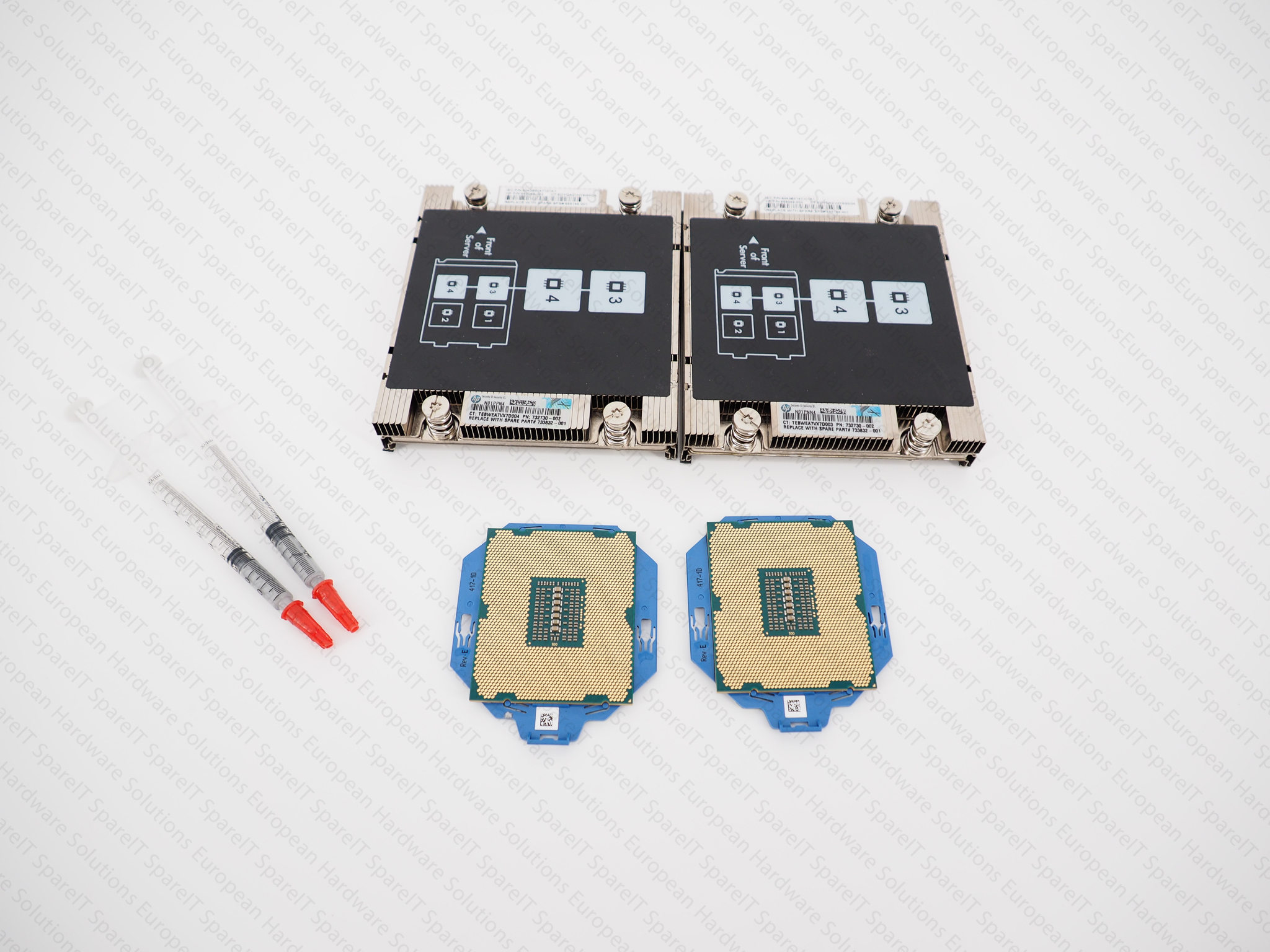

HPE Intel Xeon E5-4650 v2 processor 2.4 GHz 25 MB L3
- Intel Xeon E5-4650 v2
- 2.4 GHz (2.9 GHz Turbo)
- 25 MB cache
- 8 GT/s
- 22 nm
- 2-processor Kit
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
We are in a multi-year journey to turn HP around, and we have put in place a plan to restore HP to growth. We know where we need to go, and we're making progress.
We continue to drive product innovation in our core markets, with a focus on cloud, security, and big data.
We see big opportunities ahead, and we are well positioned to take advantage of these opportunities with our remarkable set of assets and strengths. We have the people, the plan, and the foundation in place to help us succeed on the next phase of the journey.
Specifications
| Other features | |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Operational conditions | |
| Tcase | 75 °C |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Smart Cache | Yes |
| Features | |
| Market segment | Server |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 40 |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Power | |
| VID Voltage Range | 0.65 - 1.30 V |
| Thermal Design Power (TDP) | 95 W |
| Graphics | |
| On-board graphics adapter | No |
| Memory | |
| ECC | Yes |
| Memory channels | Quad-channel |
| Memory bandwidth supported by processor (max) | 59.7 GB/s |
| Memory clock speeds supported by processor | 800,1066,1333,1600,1866 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Maximum internal memory supported by processor | 768 GB |
| Processor | |
| Processor boost frequency | 2.9 GHz |
| Bus type | QPI |
| Number of QPI links | 2 |
| Processor cache type | L3 |
| Processor cache | 25 MB |
| Processor operating modes | 32-bit, 64-bit |
| System bus rate | 8 GT/s |
| Processor threads | 20 |
| Processor model | E5-4650V2 |
| Processor lithography | 22 nm |
| Component for | Server/workstation |
| Processor socket | LGA 2011 (Socket R) |
| Processor cores | 10 |
| Processor base frequency | 2.4 GHz |
| Processor family | Intel® Xeon® E5 V2 Family |
