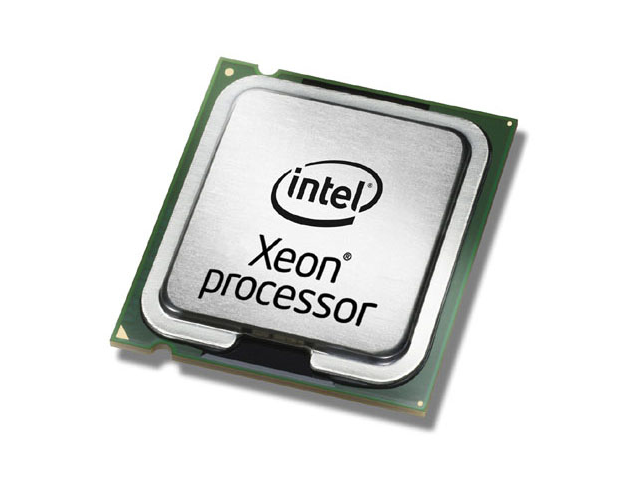

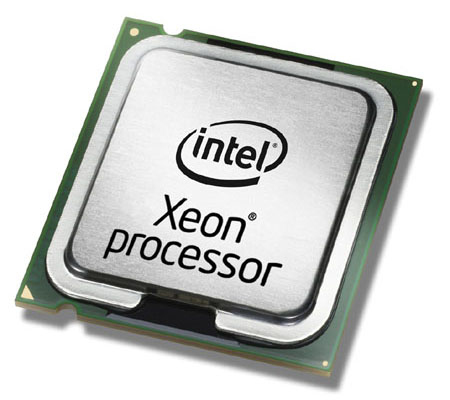

Intel Xeon E5-1620V3 processor 3.5 GHz 10 MB Smart Cache
- Intel® Xeon® Processor E5-1620 v3 (10M Cache
- 3.50 GHz)
- LGA 2011-v3
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Intel Xeon E5-1620V3. Processor family: Intel Xeon E5 v3, Processor socket: LGA 2011-v3, Processor lithography: 22 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 768 GB, Memory types supported by processor: DDR4-SDRAM. Market segment: Server, Supported instruction sets: AVX 2.0, Scalability: 1S. Intel® Turbo Boost Technology 2.0 frequency: 3.6 GHz. Package width: 44 mm, Package depth: 140 mm, Package height: 117 mm
Servers, workstations, and storage solutions based on the new Intel® Xeon® processor E5 family deliver the best combination of performance, built-in capabilities, and cost-effectiveness to make data centers more flexible and efficient. From virtualization and cloud computing solutions to design automation or real-time financial transactions, you’ll be delighted by better than ever performance no matter what tasks you face.
Your investment in industry standard technology from Intel combined with innovative solutions from partners help future-proof your data center with infrastructure that grows with your business.
Technology to scale innovative private cloud services
Today’s private clouds enable greater business agility and efficiency by delivering innovative and scalable services that drive value back into the organizations they serve. Building and managing these services require systems that scale to meet your ever changing needs, while delivering solutions to the challenges IT managers face every day. Server and storage platforms based on the Intel® Xeon® processor E5 family are built to be at the heart of today’s data centers and enable powerful, versatile private cloud solutions.
New Intel® Xeon® processor E5: a new performance sweet spot
The Intel® Xeon® processor E5 family support key cloud requirements that make your data center agile and more responsive to changing business needs. Maintaining industry leadership for power efficiency and continuing Intel Xeon processor performance advancements, the Intel® Xeon® processor E5 family gives you additional performance when you need it for single- and multi-threaded applications, including increased floating-point performance for technical computing workloads.
Specifications
| Other features | |
|---|---|
| Maximum internal memory | |
| Maximum internal memory | |
| Intel® Virtualization Technology (Intel® VT) | |
| Weight & dimensions | |
| Processor package size | |
| Package height | |
| Package depth | |
| Package width | |
| Technical details | |
| Bus type units | |
| Launch date | |
| Status | |
| Maximum memory | |
| Processor brand name | |
| Product family | |
| Last change | |
| Bus speed | |
| Processor cache | |
| Product type | |
| Supported memory types | |
| Packaging data | |
| Package type | |
| Algemeen | |
| Productfamilie | |
| Operational conditions | |
| Tcase | |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | |
| Intel Demand Based Switching | |
| Intel 64 | |
| Intel Virtualization Technology (VT-x) | |
| Intel Virtualization Technology for Directed I/O (VT-d) | |
| Intel® Secure Key | |
| Intel TSX-NI | |
| Intel® OS Guard | |
| Conflict Free processor | |
| Intel Enhanced Halt State | |
| Intel Identity Protection Technology version | |
| Intel Secure Key Technology version | |
| Intel TSX-NI version | |
| Intel® vPro™ Platform Eligibility | |
| Intel® Transactional Synchronization Extensions | |
| Intel® Turbo Boost Technology 2.0 frequency | |
| Intel® Hyper Threading Technology (Intel® HT Technology) | |
| Intel® Identity Protection Technology (Intel® IPT) | |
| Intel® Turbo Boost Technology | |
| Intel Flex Memory Access | |
| Intel® AES New Instructions (Intel® AES-NI) | |
| Enhanced Intel SpeedStep Technology | |
| Intel Trusted Execution Technology | |
| Intel® Smart Cache | |
| Features | |
| Commodity Classification Automated Tracking System (CCATS) | |
| Export Control Classification Number (ECCN) | |
| Harmonized System (HS) code | |
| Market segment | |
| Scalability | |
| CPU configuration (max) | |
| Embedded options available | |
| Physical Address Extension (PAE) | |
| Physical Address Extension (PAE) | |
| PCI Express CEM revision | |
| Supported instruction sets | |
| PCI Express slots version | |
| Maximum number of PCI Express lanes | |
| Execute Disable Bit | |
| Idle States | |
| Thermal Monitoring Technologies | |
| Power | |
| VID Voltage Range | |
| Thermal Design Power (TDP) | |
| Graphics | |
| On-board graphics adapter | |
| Memory | |
| ECC | |
| Memory channels | |
| Memory bandwidth supported by processor (max) | |
| Memory clock speeds supported by processor | |
| Memory types supported by processor | |
| Maximum internal memory supported by processor | |
| Processor | |
| Processor ARK ID | |
| Processor code | |
| Stepping | |
| Processor boost frequency | |
| Bus type | |
| Processor codename | |
| L3 cache speed | |
| Processor cache type | |
| Processor cache | |
| Processor operating modes | |
| Processor threads | |
| Processor model | |
| Processor series | |
| Cooler included | |
| Box | |
| Processor lithography | |
| Component for | |
| Processor socket | |
| Processor cores | |
| Processor base frequency | |
| Processor family | |
| Processor manufacturer | |
| Other features | |
|---|---|
| Maximum internal memory | 786432 MB |
| Maximum internal memory | 768 GB |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Weight & dimensions | |
| Processor package size | 52.5mm x 45mm |
| Package height | 117 mm |
| Package depth | 140 mm |
| Package width | 44 mm |
| Technical details | |
| Bus type units | GT/s |
| Launch date | Q3'14 |
| Status | Discontinued |
| Maximum memory | 768 GB |
| Processor brand name | Intel Xeon v2 |
| Product family | Intel Xeon Processor E5 v3 Family |
| Last change | 63903513 |
| Bus speed | 0 GT/s |
| Processor cache | 10240 KB |
| Product type | Processor |
| Supported memory types | DDR4-SDRAM |
| Packaging data | |
| Package type | Retail box |
| Algemeen | |
| Productfamilie | Xeon |
| Operational conditions | |
| Tcase | 66.2 °C |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | Yes |
| Conflict Free processor | No |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® Turbo Boost Technology 2.0 frequency | 3.6 GHz |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Smart Cache | Yes |
| Features | |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Export Control Classification Number (ECCN) | 5A992C |
| Harmonized System (HS) code | 8542310001 |
| Market segment | Server |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Physical Address Extension (PAE) | Yes |
| Physical Address Extension (PAE) | 46 bit |
| PCI Express CEM revision | 3.0 |
| Supported instruction sets | AVX 2.0 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 40 |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Power | |
| VID Voltage Range | 0.65 - 1.3 V |
| Thermal Design Power (TDP) | 140 W |
| Graphics | |
| On-board graphics adapter | No |
| Memory | |
| ECC | Yes |
| Memory channels | Quad-channel |
| Memory bandwidth supported by processor (max) | 68 GB/s |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 768 GB |
| Processor | |
| Processor ARK ID | 82763 |
| Processor code | SR20P |
| Stepping | R2 |
| Processor boost frequency | 3.6 GHz |
| Bus type | QPI |
| Processor codename | Haswell |
| L3 cache speed | 3.5 GHz |
| Processor cache type | Smart Cache |
| Processor cache | 10 MB |
| Processor operating modes | 64-bit |
| Processor threads | 8 |
| Processor model | E5-1620V3 |
| Processor series | Intel Xeon E5-1600 v3 |
| Cooler included | No |
| Box | No |
| Processor lithography | 22 nm |
| Component for | Server/workstation |
| Processor socket | LGA 2011-v3 |
| Processor cores | 4 |
| Processor base frequency | 3.5 GHz |
| Processor family | Intel Xeon E5 v3 |
| Processor manufacturer | Intel |
