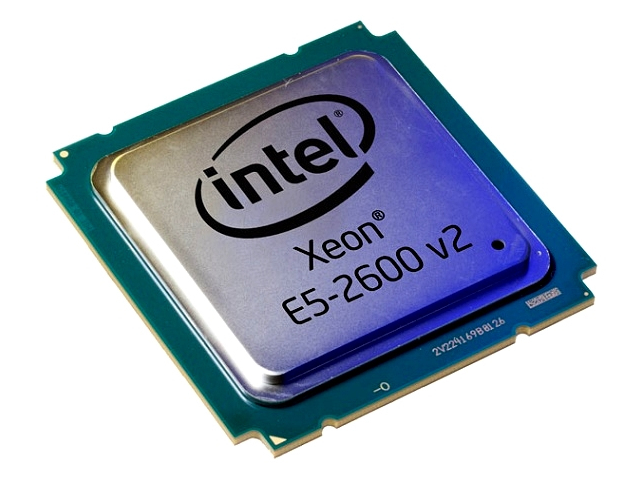

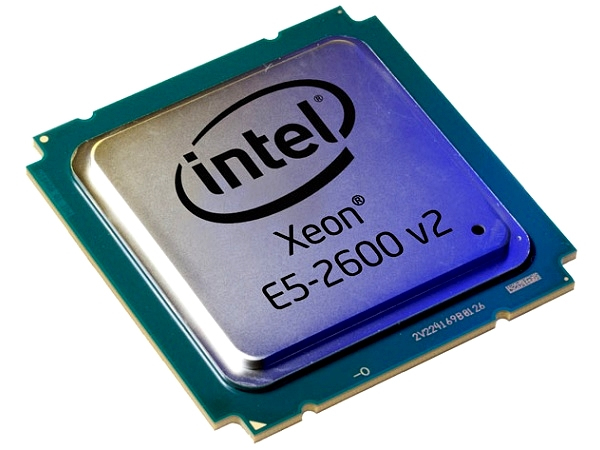

SR1AN Intel Xeon E5-2620V2 processor 2.1 GHz 15 MB Smart Cache
- Intel® Xeon® Processor E5-2620 v2 (15M Cache
- 2.10 GHz)
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Intel Xeon E5-2620V2. Processor family: Intel® Xeon® E5 Family, Processor socket: LGA 2011 (Socket R), Processor lithography: 22 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 768 GB, Memory types supported by processor: DDR3-SDRAM. Market segment: Server, Supported instruction sets: AVX, Scalability: 2S. Intel® Turbo Boost Technology 2.0 frequency: 2.6 GHz. Package width: 44 mm, Package depth: 140 mm, Package height: 117 mm
Now with greater performance, efficiency, and security to fortify your cloud solutions.
The explosive growth of unstructured data puts new demands on network and storage infrastructure and challenges your ability to deliver services such as cloud computing. IT needs to respond rapidly to new and changing business demands, scale quickly and appropriately to fluctuating workloads, accommodate business expansions, and protect your data from cybercriminals—all while keeping costs down.
Invest in an agile foundation.
The new Intel® Xeon® processor E5-2600 and E5-1600 v2 product families are at the heart of an agile, efficient data center that meets your diverse needs. Now you can deploy a more secure private cloud, quickly crunch through big data, and get the most out of your data center with greater energy efficiency.
Specifications
| Other features | |
|---|---|
| Maximum internal memory | 786432 MB |
| Maximum internal memory | 768 GB |
| Maximum internal memory | 786432 MB |
| Maximum internal memory | 768 GB |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Weight & dimensions | |
| Processor package size | 52.5mm x 45mm |
| Processor package size | 52.5mm x 45mm |
| Package weight | 130 g |
| Package weight | 130 g |
| Package height | 117 mm |
| Package height | 117 mm |
| Package depth | 140 mm |
| Package depth | 140 mm |
| Package width | 44 mm |
| Package width | 44 mm |
| Technical details | |
| Bus bandwidth | 7.2 |
| Bus type units | GT/s |
| Launch date | Q3'13 |
| Status | Launched |
| Maximum memory | 768 GB |
| Processor brand name | Intel Xeon |
| Product family | Intel Xeon Processor E5 v2 Family |
| Last change | 63903513 |
| Bus speed | 7.2 GT/s |
| Bus bandwidth | 7.2 |
| Bus type units | GT/s |
| Launch date | Q3'13 |
| Status | Launched |
| Maximum memory | 768 GB |
| Processor brand name | Intel Xeon |
| Product family | Intel Xeon Processor E5 v2 Family |
| Last change | 63903513 |
| Bus speed | 7.2 GT/s |
| Processor cache | 15360 KB |
| Product type | Processor |
| Supported memory types | DDR3-SDRAM |
| Processor cache | 15360 KB |
| Product type | Processor |
| Supported memory types | DDR3-SDRAM |
| Packaging data | |
| Package type | Retail box |
| Package type | Retail box |
| Algemeen | |
| Productfamilie | Xeon |
| Productfamilie | Xeon |
| Operational conditions | |
| Tcase | 71 °C |
| Tcase | 71 °C |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | Yes |
| Conflict Free processor | No |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | Yes |
| Conflict Free processor | No |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® Transactional Synchronization Extensions | No |
| Intel® Turbo Boost Technology 2.0 frequency | 2.6 GHz |
| Intel® Turbo Boost Technology 2.0 frequency | 2.6 GHz |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Features | |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Export Control Classification Number (ECCN) | 5A992C |
| Export Control Classification Number (ECCN) | 5A992C |
| Harmonized System (HS) code | 8542310001 |
| Harmonized System (HS) code | 8542310001 |
| Market segment | Server |
| Market segment | Server |
| Scalability | 2S |
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Physical Address Extension (PAE) | 46 bit |
| PCI Express CEM revision | 3.0 |
| Scalability | 2S |
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Physical Address Extension (PAE) | 46 bit |
| PCI Express CEM revision | 3.0 |
| Supported instruction sets | AVX |
| Supported instruction sets | AVX |
| PCI Express slots version | 3.0 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 40 |
| Maximum number of PCI Express lanes | 40 |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Power | |
| VID Voltage Range | 0.65 - 1.3 V |
| VID Voltage Range | 0.65 - 1.3 V |
| Thermal Design Power (TDP) | 80 W |
| Thermal Design Power (TDP) | 80 W |
| Graphics | |
| On-board graphics adapter | No |
| On-board graphics adapter | No |
| Memory | |
| ECC | Yes |
| ECC | Yes |
| Memory channels | Quad-channel |
| Memory channels | Quad-channel |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
| Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
| Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Memory types supported by processor | DDR3-SDRAM |
| Maximum internal memory supported by processor | 768 GB |
| Maximum internal memory supported by processor | 768 GB |
| Processor | |
| Processor ARK ID | 75789 |
| Processor ARK ID | 75789 |
| Processor boost frequency | 2.6 GHz |
| Bus type | QPI |
| Number of QPI links | 2 |
| Processor codename | Ivy Bridge EP |
| Processor boost frequency | 2.6 GHz |
| Bus type | QPI |
| Number of QPI links | 2 |
| Processor codename | Ivy Bridge EP |
| Processor cache type | Smart Cache |
| Processor cache type | Smart Cache |
| Processor cache | 15 MB |
| Processor cache | 15 MB |
| Processor operating modes | 64-bit |
| Processor operating modes | 64-bit |
| System bus rate | 7.2 GT/s |
| System bus rate | 7.2 GT/s |
| Processor threads | 12 |
| Processor threads | 12 |
| Processor model | E5-2620V2 |
| Processor model | E5-2620V2 |
| Processor series | Intel Xeon E5-2600 v2 |
| Processor series | Intel Xeon E5-2600 v2 |
| Cooler included | No |
| Cooler included | No |
| Box | No |
| Box | No |
| Processor lithography | 22 nm |
| Processor lithography | 22 nm |
| Component for | Server/workstation |
| Component for | Server/workstation |
| Processor socket | LGA 2011 (Socket R) |
| Processor socket | LGA 2011 (Socket R) |
| Processor cores | 6 |
| Processor cores | 6 |
| Processor base frequency | 2.1 GHz |
| Processor base frequency | 2.1 GHz |
| Processor family | Intel® Xeon® E5 Family |
| Processor family | Intel® Xeon® E5 Family |
| Processor manufacturer | Intel |
| Processor manufacturer | Intel |
