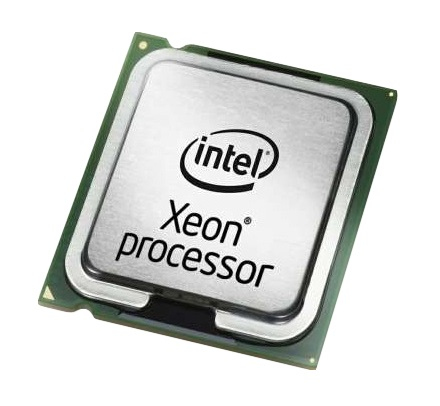

Intel Xeon E5-2630V3 processor 2.4 GHz 20 MB Smart Cache
- Intel® Xeon® Processor E5-2630 v3 (20M Cache
- 2.40 GHz)
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Intel® Hyper-Threading Technology
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
Enhanced Intel SpeedStep® Technology
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.
Specifications
| Other features | |
|---|---|
| Maximum internal memory | 786432 MB |
| Maximum internal memory | 768 GB |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Weight & dimensions | |
| Processor package size | 52.5mm x 45mm |
| Technical details | |
| Bus bandwidth | 8 |
| Bus type units | GT/s |
| Launch date | Q3'14 |
| Status | Discontinued |
| Maximum memory | 768 GB |
| Processor brand name | Intel Xeon v2 |
| Product family | Intel Xeon Processor E5 v3 Family |
| Last change | 63903513 |
| Bus speed | 8 GT/s |
| Processor cache | 20480 KB |
| Product type | Processor |
| Supported memory types | DDR4-SDRAM |
| Packaging data | |
| Package type | Retail box |
| Algemeen | |
| Productfamilie | Xeon |
| Operational conditions | |
| Tcase | 72.1 °C |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | Yes |
| Conflict Free processor | No |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® Turbo Boost Technology 2.0 frequency | 3.2 GHz |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Features | |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Export Control Classification Number (ECCN) | 5A992C |
| Harmonized System (HS) code | 8542310001 |
| Market segment | Server |
| Scalability | 2S |
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Physical Address Extension (PAE) | 46 bit |
| PCI Express CEM revision | 3.0 |
| Supported instruction sets | AVX 2.0 |
| PCI Express configurations | 1x4, 1x8, 1x16 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 40 |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Power | |
| VID Voltage Range | 0.65 - 1.3 V |
| Thermal Design Power (TDP) | 85 W |
| Memory | |
| ECC | Yes |
| Memory channels | Quad-channel |
| Memory bandwidth supported by processor (max) | 59 GB/s |
| Memory clock speeds supported by processor | 1600,1866 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 768 GB |
| Processor | |
| Processor ARK ID | 83356 |
| Stepping | R2 |
| Processor boost frequency | 3.2 GHz |
| Bus type | QPI |
| Number of QPI links | 2 |
| Processor codename | Haswell |
| Processor cache type | Smart Cache |
| Processor cache | 20 MB |
| Processor operating modes | 64-bit |
| System bus rate | 8 GT/s |
| Processor threads | 16 |
| Processor model | E5-2630V3 |
| Processor series | Intel Xeon E5-2600 v3 |
| Cooler included | No |
| Box | No |
| Processor lithography | 22 nm |
| Component for | Server/workstation |
| Processor socket | LGA 2011-v3 |
| Processor cores | 8 |
| Processor base frequency | 2.4 GHz |
| Processor family | Intel Xeon E5 v3 |
| Processor manufacturer | Intel |
