Description

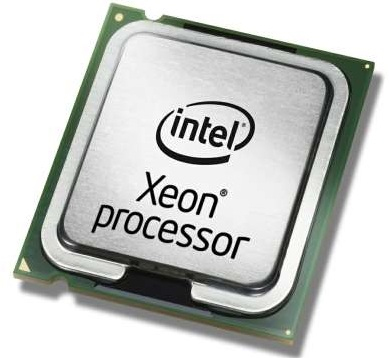

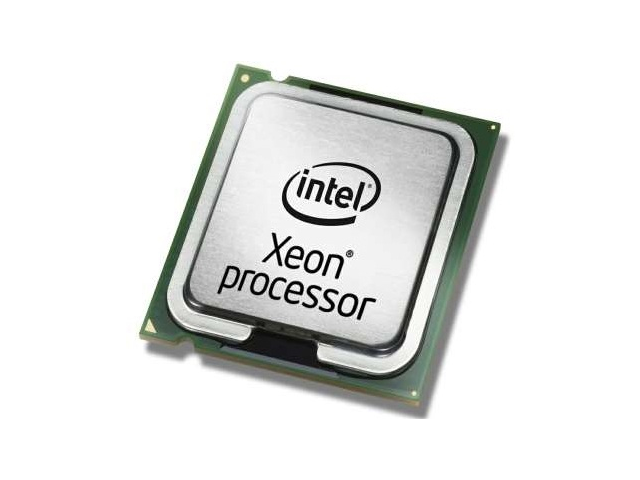

Intel Xeon E5-2640V3. Processor family: Intel Xeon E5 v3, Processor socket: LGA 2011-v3, Processor lithography: 22 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 768 GB, Memory types supported by processor: DDR4-SDRAM. Market segment: Server, PCI Express configurations: 1x4, 1x8, 1x16, Supported instruction sets: AVX 2.0. Intel® Turbo Boost Technology 2.0 frequency: 3.4 GHz. Package type: Retail box
With the Intel® Xeon® processor E5-2600 v3 and Intel® Xeon® E5-1600 v3 product families at the heart of an agile, efficient data center, your organization can respond rapidly to changing business demands, protect data from cybercriminals and streamline data center operations.
A New Way to Think About the Data Center
Now designed for compute, storage, and networking to work better together, the latest Intel® Xeon® processor can help you meet today’s challenges while laying the groundwork for tomorrow’s fully-orchestrated data center.
- Deliver more automation capabilities for higher-performing, more secure clouds
- Solve increasing demands for storage and quickly crunch through complex data analytics problems
- Meet the speed of execution expected today
- Operate a more cost-effective, energy-efficient data center
- Measure and monitor.
Responsive Performance, Remarkable Energy Efficiency
The latest members of the Intel® Xeon® processor E5 family deliver the best combination of performance, built-in capabilities, and cost-effectiveness to address technical computing challenges, enable cloud deployments, accelerate processor performance for peak loads, deliver intelligent storage or power data analytics. In comparison to previous generation processors you get:
- Up to 3x more performance
- The world's most energy efficient server
- Up to 1.9x more performance with Intel® AVX2
- Up to 1.7x increased virtual machine density
- Up to 1.4x increased memory bandwidth with DDR4.
Streamline Your Path to Private Cloud Services Delivery
Built-in virtualization delivers faster performance for core virtualization processes and improves the quality and control of services.
- Improved application performance, live migration, provisioning, dynamic load balancing, and disaster recovery.
- Greater service quality and utilization by monitoring individual virtual machines (VMs) in cache and addressing “noisy neighbor” issues.
- Enabling ultra-high isolation for usages such as financial services.
A Foundation for Trust and Security
Improve your ability to safeguard your data and infrastructure with foundational, hardware-assisted security capabilities.
- Encourage pervasive encryption by reducing associated performance penalties.
- Deploy a wide range of security applications with faster, higher-quality cryptographic keys and certificates.
- Protect your operating system by increasing security against malware, denial-of-service (DoS), privilege escalation, and platform surface attacks.
- Protect against attacks against the hypervisor, BIOS, firmware, and other prelaunch software components and gain visibility into system security to strengthen IT compliance.
Specifications
Other features | |
---|---|
Maximum internal memory | 786432 MB |
Maximum internal memory | 786432 MB |
Maximum internal memory | 768 GB |
Maximum internal memory | 768 GB |
Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
Weight & dimensions | |
Processor package size | 52.5mm x 45mm |
Processor package size | 52.5mm x 45mm |
Technical details | |
End of servicing updates date | Friday, December 31, 2021 |
End of servicing updates date | Friday, December 31, 2021 |
Servicing status | End of Servicing Updates |
Servicing status | End of Servicing Updates |
Bus bandwidth | 8 |
Bus bandwidth | 8 |
Bus type units | GT/s |
Bus type units | GT/s |
Launch date | Q3'14 |
Launch date | Q3'14 |
Status | Launched |
Status | Launched |
Maximum memory | 768 GB |
Maximum memory | 768 GB |
Processor brand name | Intel Xeon v2 |
Processor brand name | Intel Xeon v2 |
Product family | Intel Xeon Processor E5 v3 Family |
Product family | Intel Xeon Processor E5 v3 Family |
Last change | 63903513 |
Last change | 63903513 |
Bus speed | 8 GT/s |
Bus speed | 8 GT/s |
Processor cache | 20480 KB |
Processor cache | 20480 KB |
Product type | Processor |
Product type | Processor |
Supported memory types | DDR4-SDRAM |
Supported memory types | DDR4-SDRAM |
Packaging data | |
Package type | Retail box |
Package type | Retail box |
Algemeen | |
Productfamilie | Xeon |
Productfamilie | Xeon |
Operational conditions | |
Tcase | 74.3 °C |
Tcase | 74.3 °C |
Processor special features | |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Intel Demand Based Switching | Yes |
Intel Demand Based Switching | Yes |
Intel 64 | Yes |
Intel 64 | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel® Secure Key | Yes |
Intel® Secure Key | Yes |
Intel TSX-NI | No |
Intel TSX-NI | No |
Intel® OS Guard | Yes |
Intel® OS Guard | Yes |
Conflict Free processor | No |
Conflict Free processor | No |
Intel Enhanced Halt State | Yes |
Intel Enhanced Halt State | Yes |
Intel Identity Protection Technology version | 0.00 |
Intel Identity Protection Technology version | 0.00 |
Intel Secure Key Technology version | 1.00 |
Intel Secure Key Technology version | 1.00 |
Intel TSX-NI version | 0.00 |
Intel TSX-NI version | 0.00 |
Intel® vPro™ Platform Eligibility | Yes |
Intel® vPro™ Platform Eligibility | Yes |
Intel® Transactional Synchronization Extensions | No |
Intel® Transactional Synchronization Extensions | No |
Intel® Turbo Boost Technology 2.0 frequency | 3.4 GHz |
Intel® Turbo Boost Technology 2.0 frequency | 3.4 GHz |
Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
Intel® Identity Protection Technology (Intel® IPT) | No |
Intel® Identity Protection Technology (Intel® IPT) | No |
Intel® Turbo Boost Technology | 2.0 |
Intel® Turbo Boost Technology | 2.0 |
Intel Flex Memory Access | No |
Intel Flex Memory Access | No |
Intel® AES New Instructions (Intel® AES-NI) | Yes |
Intel® AES New Instructions (Intel® AES-NI) | Yes |
Enhanced Intel SpeedStep Technology | Yes |
Enhanced Intel SpeedStep Technology | Yes |
Intel Trusted Execution Technology | Yes |
Intel Trusted Execution Technology | Yes |
Features | |
Commodity Classification Automated Tracking System (CCATS) | G077159 |
Commodity Classification Automated Tracking System (CCATS) | G077159 |
Export Control Classification Number (ECCN) | 5A992C |
Export Control Classification Number (ECCN) | 5A992C |
Harmonized System (HS) code | 85423119 |
Harmonized System (HS) code | 85423119 |
Market segment | Server |
Market segment | Server |
Scalability | 2S |
Scalability | 2S |
CPU configuration (max) | 2 |
CPU configuration (max) | 2 |
Embedded options available | Yes |
Embedded options available | Yes |
Physical Address Extension (PAE) | 46 bit |
Physical Address Extension (PAE) | 46 bit |
PCI Express CEM revision | 3.0 |
PCI Express CEM revision | 3.0 |
Supported instruction sets | AVX 2.0 |
Supported instruction sets | AVX 2.0 |
PCI Express configurations | 1x4, 1x8, 1x16 |
PCI Express configurations | 1x4, 1x8, 1x16 |
PCI Express slots version | 3.0 |
PCI Express slots version | 3.0 |
Maximum number of PCI Express lanes | 40 |
Maximum number of PCI Express lanes | 40 |
Execute Disable Bit | Yes |
Execute Disable Bit | Yes |
Idle States | Yes |
Idle States | Yes |
Thermal Monitoring Technologies | Yes |
Thermal Monitoring Technologies | Yes |
Power | |
VID Voltage Range | 0.65 - 1.3 V |
VID Voltage Range | 0.65 - 1.3 V |
Thermal Design Power (TDP) | 90 W |
Thermal Design Power (TDP) | 90 W |
Graphics | |
On-board graphics adapter | No |
On-board graphics adapter | No |
Memory | |
ECC | Yes |
ECC | Yes |
Memory channels | Quad-channel |
Memory channels | Quad-channel |
Memory bandwidth supported by processor (max) | 59 GB/s |
Memory bandwidth supported by processor (max) | 59 GB/s |
Memory clock speeds supported by processor | 1600,1866 MHz |
Memory clock speeds supported by processor | 1600,1866 MHz |
Memory types supported by processor | DDR4-SDRAM |
Memory types supported by processor | DDR4-SDRAM |
Maximum internal memory supported by processor | 768 GB |
Maximum internal memory supported by processor | 768 GB |
Processor | |
Processor ARK ID | 83359 |
Processor ARK ID | 83359 |
Stepping | R2 |
Stepping | R2 |
Processor boost frequency | 3.4 GHz |
Processor boost frequency | 3.4 GHz |
Bus type | QPI |
Bus type | QPI |
Number of QPI links | 2 |
Number of QPI links | 2 |
Processor codename | Haswell |
Processor codename | Haswell |
Processor cache type | Smart Cache |
Processor cache type | Smart Cache |
Processor cache | 20 MB |
Processor cache | 20 MB |
Processor operating modes | 64-bit |
Processor operating modes | 64-bit |
System bus rate | 8 GT/s |
System bus rate | 8 GT/s |
Processor threads | 16 |
Processor threads | 16 |
Processor model | E5-2640V3 |
Processor model | E5-2640V3 |
Processor series | Intel Xeon E5-2600 v3 |
Processor series | Intel Xeon E5-2600 v3 |
Cooler included | No |
Cooler included | No |
Box | No |
Box | No |
Processor lithography | 22 nm |
Processor lithography | 22 nm |
Component for | Server/workstation |
Component for | Server/workstation |
Processor socket | LGA 2011-v3 |
Processor socket | LGA 2011-v3 |
Processor cores | 8 |
Processor cores | 8 |
Processor base frequency | 2.6 GHz |
Processor base frequency | 2.6 GHz |
Processor family | Intel Xeon E5 v3 |
Processor family | Intel Xeon E5 v3 |
Processor manufacturer | Intel |
Processor manufacturer | Intel |
