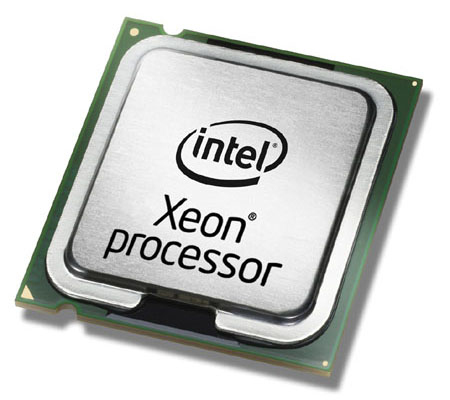

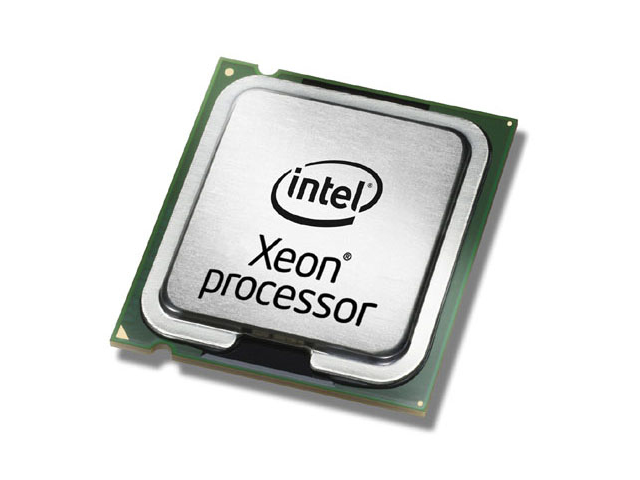

Intel Xeon E7530 processor 1.87 GHz 12 MB L3
- Intel® Xeon® Processor E7530 (12M Cache
- 1.86 GHz
- 5.86 GT/s Intel® QPI)
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Designed for maximum performance and reliability, these massively scalable 2-way to 256-way, 64-bit multi-core servers are designed to provide exceptional scalable performance and mission-critical class reliability for your most data-demanding applications and virtualization projects.
Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Intel® Hyper-Threading Technology
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
Enhanced Intel SpeedStep® Technology
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.
Specifications
| Other features | |
|---|---|
| Cache memory | 12 MB |
| Technical details | |
| Born on date | Q1'10 |
| Bus bandwidth | 5.86 |
| Bus type units | GT/s |
| Launch date | Q1'10 |
| Processor core voltage | 0.675-1.35 V |
| Product name | Intel Xeon E7530 (12M Cache, 1.86 GHz, 5.86 GT/s Intel QPI) |
| Status | Discontinued |
| Processor brand name | Intel Xeon |
| Product family | Intel Xeon Processor 7000 Sequence |
| Last change | 63903513 |
| Bus speed | 5.86 GT/s |
| Processor cache | 12288 KB |
| Product type | Processor |
| Algemeen | |
| Productfamilie | Xeon |
| Operational conditions | |
| Tcase | 64 °C |
| Maximum operating temperature | 64 °C |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Features | |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Export Control Classification Number (ECCN) | 3A991.A.1 |
| Harmonized System (HS) code | 8542310001 |
| Market segment | Server |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Power | |
| VID Voltage Range | 0.675 - 1.35 V |
| Thermal Design Power (TDP) | 105 W |
| Processor | |
| Processor ARK ID | 46491 |
| Processor code | SLBRJ |
| Processor boost frequency | 2.13 GHz |
| Bus type | QPI |
| Processor codename | Nehalem EX |
| Processor cache type | L3 |
| Processor cache | 12 MB |
| Processor operating modes | 64-bit |
| System bus rate | 5.86 GT/s |
| Processor threads | 12 |
| Processor model | E7530 |
| Processor series | Intel Xeon 7500 Series |
| Cooler included | No |
| Box | No |
| Processor lithography | 45 nm |
| Processor socket | LGA 1567 (Socket LS) |
| Processor cores | 6 |
| Processor base frequency | 1.87 GHz |
| Processor family | Intel® Xeon® 7000 Sequence |
| Processor manufacturer | Intel |
