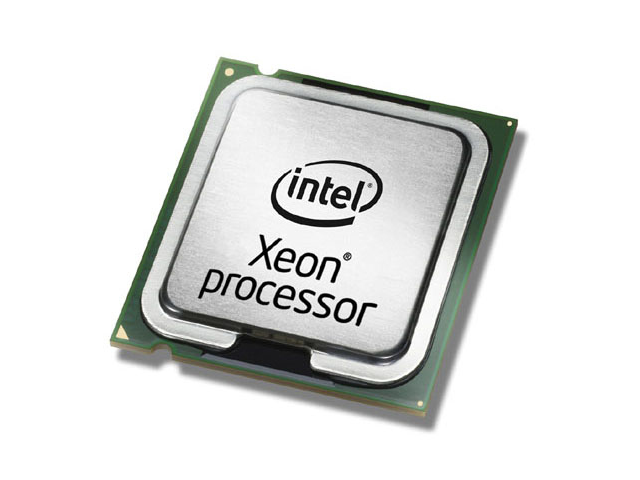

SR2R7 Intel Xeon E5-2630V4 (2.2/3.1GHz 10C) Processor
- Intel Xeon E5-2630 v4 Ten-Core 64-bit processor - 2.2GHz base frequency (Broadwell
- 25MB Intel Smart Cache
- Intel QuickPath Interconnect (QPI) speed 8.0 GT/s
- 85W Thermal Design Power (TDP)
- FCLGA 2011-3 socket),DDR4-1600/1866/2133
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Intel Xeon E5-2630V4. Processor family: Intel® Xeon® E5 v4, Processor socket: LGA 2011-v3, Processor lithography: 14 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 1.54 TB, Memory types supported by processor: DDR4-SDRAM. Market segment: Server, Supported instruction sets: AVX 2.0, Scalability: 2S. Intel® Turbo Boost Technology 2.0 frequency: 3.1 GHz. Package type: Retail box
The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse workloads. These processors are designed for architecting next-generation data centers running on, software defined infrastructure supercharged for efficiency, performance, and agile services delivery across cloud-native and traditional applications. They support workloads for cloud, high-performance computing, networking, and storage.
Performance
Built on 14 nm process technology, the Intel® Xeon® processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.
Optimized for Orchestration
Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.
Enhanced Security
Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.
Specifications
| Other features | |
|---|---|
| Compatibility | Intel Server System R1208WT2GSRIntel Server System R1208WTTGSRIntel Server System R1304WT2GSRIntel Server System R1304WTTGSRIntel Server System R2208WTTYSRIntel Server System R2208WT2YSRIntel Server System R2208WTTYC1RIntel Server System R2308WTTYSRIntel Server System R2312WTTYSRIntel Server System R2224WTTYSRIntel Server Board S2600CW2RIntel Server Board S2600CW2SRIntel Server Board S2600CWTRIntel Server Board S2600CWTSRIntel Server Board S2600KPRIntel Server Board S2600KPFRIntel Server Board S2600KPTRIntel Server Board S2600TPRIntel Server Board S2600TPFRIntel Server Board S2600WTTRIntel Server Board S2600WT2RIntel Server Board S2600WTTS1RIntel Compute Module HNS2600KPFRIntel Compute Module HNS2600KPRIntel Compute Module HNS2600TP24RIntel Compute Module HNS2600TPFRIntel Compute Module HNS2600TPRIntel Compute Module HNS2600TP24SR |
| Maximum internal memory | 1572864 MB |
| Maximum internal memory | 1.5 TB |
| Weight & dimensions | |
| Processor package size | 45mm x 52.5mm |
| Technical details | |
| End of servicing updates date | Thursday, June 30, 2022 |
| Servicing status | End of Servicing Updates |
| Bus bandwidth | 8 |
| Bus type units | GT/s |
| Launch date | Q1'16 |
| Status | Launched |
| Processor brand name | Intel Xeon |
| Product family | Intel Xeon Processor E5 v4 Family |
| Last change | 63903513 |
| Bus speed | 8 GT/s |
| Processor cache | 25600 KB |
| Product type | Processor |
| Supported memory types | DDR4-SDRAM |
| Packaging data | |
| Package type | Retail box |
| Algemeen | |
| Productfamilie | Xeon |
| Operational conditions | |
| Tcase | 74 °C |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel Demand Based Switching | Y |
| Intel 64 | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel® Secure Key | Y |
| Intel TSX-NI | Y |
| Intel® OS Guard | Y |
| Conflict Free processor | Y |
| Intel Enhanced Halt State | Y |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel® vPro™ Platform Eligibility | Y |
| Intel® Transactional Synchronization Extensions | Y |
| Intel® Turbo Boost Technology 2.0 frequency | 3.1 GHz |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
| Intel® Identity Protection Technology (Intel® IPT) | N |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Flex Memory Access | N |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Enhanced Intel SpeedStep Technology | Y |
| Intel Trusted Execution Technology | Y |
| Features | |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Export Control Classification Number (ECCN) | 5A992C |
| Harmonized System (HS) code | 8542310001 |
| Market segment | Server |
| Scalability | 2S |
| CPU configuration (max) | 2 |
| Embedded options available | N |
| Physical Address Extension (PAE) | Y |
| Physical Address Extension (PAE) | 46 bit |
| PCI Express CEM revision | 3.0 |
| Supported instruction sets | AVX 2.0 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 40 |
| Execute Disable Bit | Y |
| Idle States | Y |
| Thermal Monitoring Technologies | Y |
| Power | |
| VID Voltage Range | 0 - 0 V |
| Thermal Design Power (TDP) | 85 W |
| Graphics | |
| On-board graphics adapter | N |
| Memory | |
| ECC | Y |
| Memory channels | Quad-channel |
| Memory bandwidth supported by processor (max) | 68.3 GB/s |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 1.54 TB |
| Processor | |
| Processor ARK ID | 92981 |
| Processor code | SR2R7 |
| Stepping | R0 |
| Processor boost frequency | 3.1 GHz |
| Bus type | QPI |
| Number of QPI links | 2 |
| Processor codename | Broadwell |
| Processor cache type | Smart Cache |
| Processor cache | 25 MB |
| Processor operating modes | 64-bit |
| System bus rate | 8 GT/s |
| Processor threads | 20 |
| Processor model | E5-2630V4 |
| Processor series | Intel Xeon E5-2600 v4 |
| Cooler included | N |
| Box | N |
| Processor lithography | 14 nm |
| Component for | Server/workstation |
| Processor socket | LGA 2011-v3 |
| Processor cores | 10 |
| Processor base frequency | 2.2 GHz |
| Processor family | Intel® Xeon® E5 v4 |
| Processor manufacturer | Intel |
