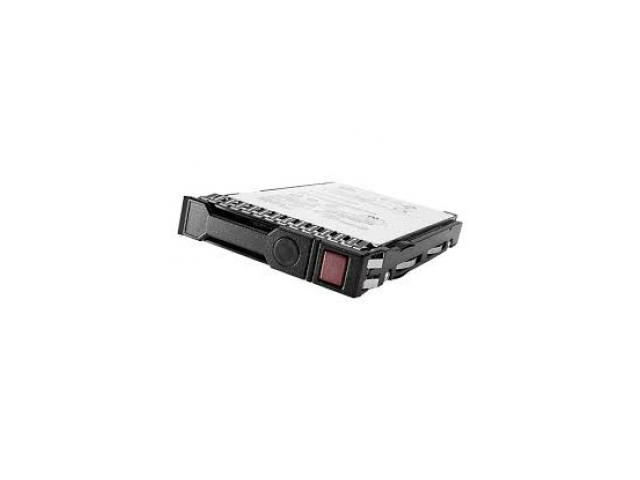

697574-B21 HPE 1.2TB 6G SAS 10K SFF (2.5in) SC DP ENT HDD - G8 G9 G10
- 1.2TB 6G SAS
- hot-plug dual-port SAS hard disk drive
- 6Gb/sec transfer rate
- 10,000 RPM
- 2.5-inch small form factor (SFF)
- Enterprise
- SmartDrive Carrier (SC)
- For use with Proliant Gen8 Gen9 Gen10 (G8 G9 G10) servers
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Option Part Number: 697574-B21
Spare Part Number: 697631-001
Model Number: EG1200FCVBQ
Model Number: EG1200FDNJT
Assembly Number: 693647-001
Assembly Number: 726480-001
General
Device Type: Hard Drive - Hot-Swap
Capacity: 1.2 TB
Form Factor: 2.5 inch SFF
Interface: SAS 6Gbps
Spindle Speed: 10000 RPM
Bytes per Sector: 512
Format Type: 512e
External Data Transfer Rate: 600 MBps
Workload Type: Enterprise
Carrier Type: Smart Carrier
Plug Type: Hot Plug
Bundled with: HPE Smart Carrier
Performance
Seek Time: 4.6 ms (average) / 8.9 ms (max)
Track-to-Track Seek Time: 0.3 ms
Expansion & Connectivity
Interfaces: 1 x SAS 6Gb/s
Compatible Bay: 2.5" SFF
Dimensions & Weight
Width: 3.00 inch
Depth: 4.70 inch
Height: 0.60 inch
Weight: 25.60 oz
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Miscellaneous
Compliant Standards: WEEE
Compatibility Information
Designed for
HPE ProLiant DL Series: DL320e Gen8 (2.5 inch), DL320e Gen8 Base (2.5 inch), DL320e Gen8 Entry (2.5 inch), DL320e Gen8 Performance (2.5 inch), DL385p Gen8 (2.5 inch), DL385p Gen8 Dedicated Workload (2.5 inch), DL385p Gen8 Entry (2.5 inch), DL385p Gen8 Maximized Consolidation (2.5 inch), DL385p Gen8 Storage (2.5 inch)
HPE ProLiant ML Series: ML310e Gen8 (2.5 inch), ML310e Gen8 Base (2.5 inch), ML310e Gen8 Entry (2.5 inch), ML310e Gen8 Performance (2.5 inch), ML350p Gen8 (2.5 inch)
HPE ProLiant SL Series: SL250s Gen8 Left Tray (2.5 inch), SL250s Gen8 Right Tray (2.5 inch), SL270s Gen8 1U Left Half Width Tray (2.5 inch), SL270s Gen8 1U Right Half Width Tray (2.5 inch)
Specifications
| Other features | |
|---|---|
| Data transfer rate | 6 Gbit/s |
| Power | |
| Operating voltage | 5 V |
| Hard drive | |
| Component for | Server/workstation |
| HDD form factor | 2.5" |
| HDD speed | 10000 RPM |
| HDD interface | SAS |
| HDD capacity | 1.2 TB |
| Operational conditions | |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| System requirements | |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
