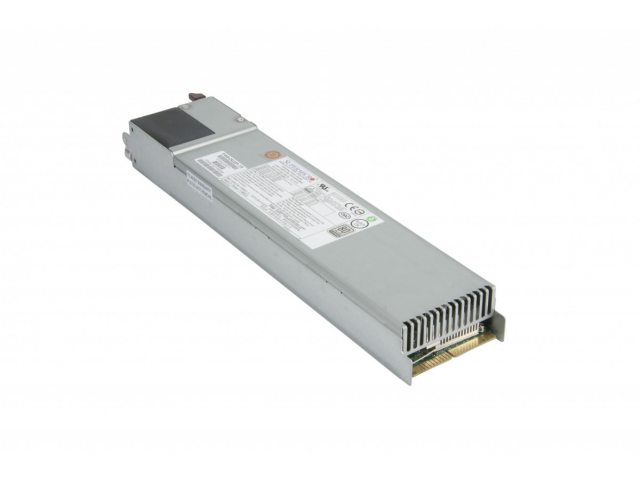

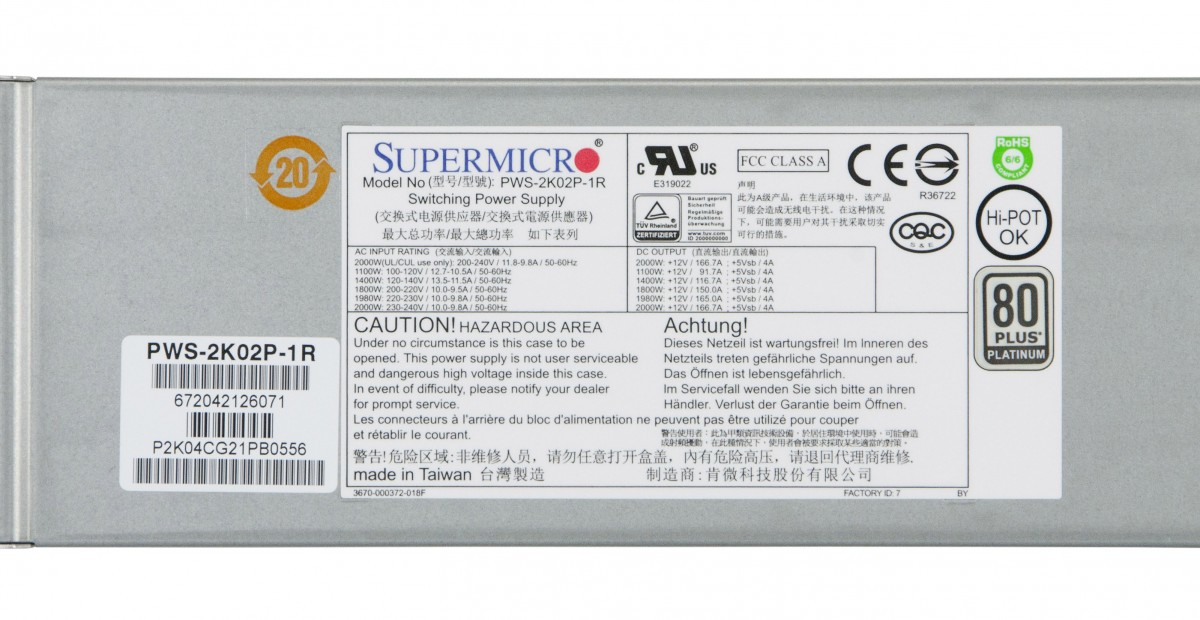

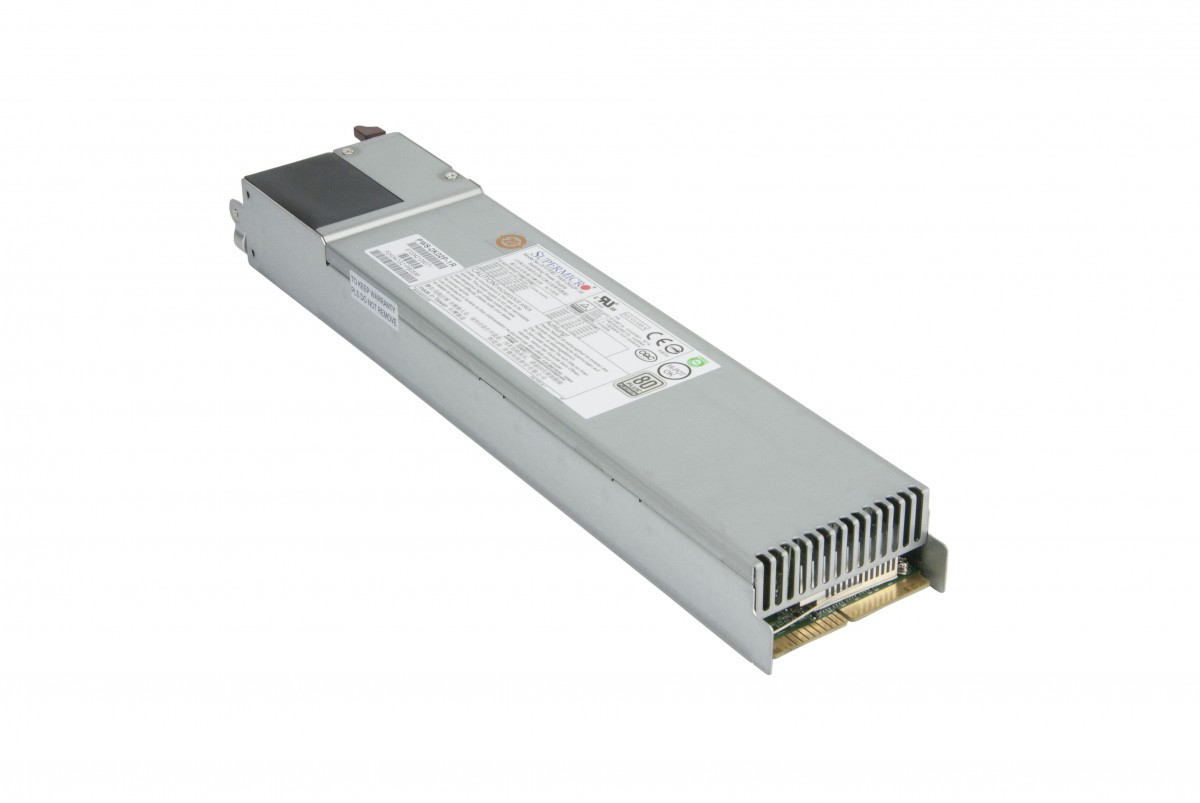

Supermicro PWS-2K02P-1R power supply unit 1100 W 1U Silver
- 2000 W
- 1 U
- PMBus 1.2
- 80 Plus Platinum
- 100-240V
- 50-60Hz
- 91%
- PFC
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Supermicro PWS-2K02P-1R. Total power: 1100 W, AC input voltage: 100 - 240 V, Peak power: 2000 W. Purpose: Server, Power supply unit (PSU) form factor: 1U, 80 PLUS certification: 80 PLUS Platinum. Product colour: Silver. Width: 76 mm, Depth: 336 mm, Height: 40 mm
The Supermicro PWS-2K02P-1R provides up to 2000W high output for your Supermicro 1U server system. It features PMBus 1.2 support for remote management and flexible redundancy control. This power supply has 80 Plus certification and active PFC for high efficiency.
Specifications
| Certificates | |
|---|---|
| Certification | CE |
| 80 PLUS certification | 80 PLUS Platinum |
| Weight & dimensions | |
| Height | 40 mm |
| Depth | 336 mm |
| Width | 76 mm |
| Design | |
| Product colour | Silver |
| Performance | |
| Power supply unit (PSU) form factor | 1U |
| Purpose | Server |
| Power | |
| Efficiency | 91% |
| Max output current (+5Vsb) | 4 A |
| Max output current (+12V) | 166.7 A |
| Power Factor Correction (PFC) type | Active |
| Input current | 13.9 - 9.5 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Peak power | 2000 W |
| Total power | 1100 W |
