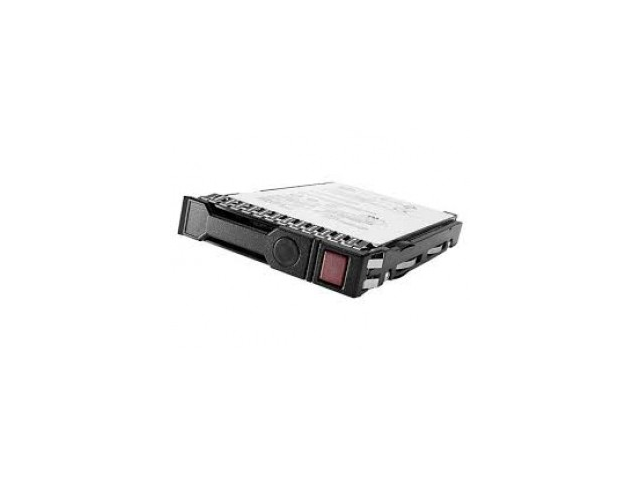

804665-B21NL HPE 400GB SATA 6G WI-PLP SFF SC SSD - G8 G9 G10
- 400GB hot-plug SSD - SATA
- Write Intensive-2 (WI)
- 6Gb/sec transfer rate
- 2.5-inch SFF
- Smart Carrier (SC)
- Power Loss Protection (PLP)
- NO HP LABEL on the Front of the Tray (NL)
- For use with Gen8 servers and beyond
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 400 GB
Interface Type: SATA 6Gbps
Form Factor: 2.5 inch SFF
Workload Type: Write Intensive
Plug Type: Hot Plug
Carrier Type: Smart Carrier (SC)
Features: Digitally Signed Firmware (DS), Power Loss Protection (PLP)
Bundled With: HPE Smart Carrier (SC)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15 mm (0.6 inch)
Performance
Endurance DWPD: 10
Drive Transfer Rate: 6Gb/sec
MAX Seq. Reads Throughput (MiB/s): 540
MAX Seq. Writes Throughput (MiB/s): 380
Random Read Average Latency uSec (4KiB,Q1): 110
Random Write Average Latency uSec (4KiB,Q1): 35
Random Read IOPS (4KiB, Q=16): 64500
Random Write IOPS (4KiB, Q=16): 48000
MAX Random Read IOPS (4KiB): 72000Q32
MAX Random Write IOPS (4KiB): 48000Q16
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 60000
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 55000
Specifications
| Other features | |
|---|---|
| Internal | Yes |
| Weight & dimensions | |
| Weight | 450 g |
| Height | 15 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Power | |
| Power consumption (average) | 9 W |
| Design | |
| SSD form factor | 2.5" |
| Performance | |
| Random write (4KB) | 48000 IOPS |
| Random read (4KB) | 64500 IOPS |
| Data transfer rate | 6 Gbit/s |
| Bytes per sector | 512 |
| Write speed | 380 MB/s |
| Read speed | 540 MB/s |
| HDD interface | Serial ATA |
| SSD capacity | 400 GB |
