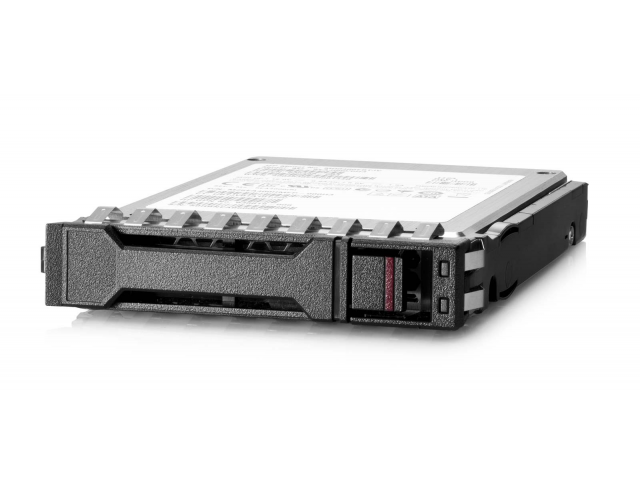

P49049-B21NL-TRAY, HPE 1.6TB 24G SAS MU SFF BC MV SSD, G10P G11, New Bulk - Zero Hours

this product is refurbished

€ 400,00 Excl. VAT

Available immediately

Part number: P49049-B21NL-TRAY

No HPE modelnumber sticker on front tray/carrier
Basic Carrier (BC)
1.6TB 24G
Reads: 2030 MBps / Writes: 1950 MBps

Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.

Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).

Please read the product description carefully and contact us if you have any questions.

Description

Option Part Number: P49049-B21

Spare Part Number: P49747-001

General

Device Type: Solid State Drive - Hot-Swap

Capacity: 1.6 TB

Form Factor: 2.5 inch SFF

Interface: SAS 24Gbps

NAND Flash Memory Type: Triple-level cell (TLC)

Plug Type: Hot Pluggable

Connectivity Type: Dual Port

Carrier Type: Basic Carrier (BC)

Workload Type: Mixed Use

Bundled with: HPE Basic Carrier (BC)

Features: Digitally Signed Firmware (DS)

Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy

Height: 15.00 mm (0.60 inch)

Performance

30 Days Writes (TB): 8760

Endurance DWPD (Drive Writes Per Day): 3

Drive Transfer Rate: 24 Gbps (external)

MAX Seq. Reads Throughput (MiB/s): 2030

MAX Seq. Writes Throughput (MiB/s): 1950

Random Read Average Latency uSec (4KiB,Q1): 90

Random Write Average Latency uSec (4KiB,Q1): 27

Random Read IOPS (4KiB, Q=16): 150000

Random Write IOPS (4KiB, Q=16): 165000

MAX Random Read IOPS (4KiB): 15500@Q64

MAX Random Write IOPS (4KiB): 165000@Q16

Expansion & Connectivity

Interfaces: 1 x SAS 24 Gb/s

Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 6.11 Watt

Random Read: 8.00 Watt

Random Write: 8.00 Watt

Sequential Read: 8.84 Watt

Sequential Write: 13.61 Watt

Random Read/Write: 8.00 Watt

MAX: 13.61 Watt

Compatibility Information

Designed for

HPE ProLiant DL Series: DL20 Gen10 Plus (2.5inch), DL20 Gen10 Plus Base (2.5inch), DL20 Gen10 Plus Entry (2.5inch), DL20 Gen10 Plus High Performance (2.5inch), DL20 Gen10 Plus Performance (2.5inch), DL325 Gen10 Plus V2 (2.5inch), DL325 Gen10 Plus V2 Base (2.5inch), DL325 Gen10 Plus V2 for Weka Base Tracking (2.5inch), DL325 Gen10 Plus V2 Performance (2.5inch), DL345 Gen10 Plus (2.5inch), DL345 Gen10 Plus Base (2.5inch), DL345 Gen10 Plus Entry (2.5inch), DL360 Gen10 Plus (2.5inch), DL360 Gen10 Plus All-NVMe Server for Software Defined Storage (2.5inch), DL360 Gen10 Plus for SAP HANA Compute Block (2.5inch), DL360 Gen10 Plus for Weka Base Tracking (2.5inch), DL360 Gen10 Plus Network Choice (2.5inch), DL365 Gen10 Plus (2.5inch), DL380 Gen10 Plus (2.5inch), DL380 Gen10 Plus Network Choice (2.5inch), DL385 Gen10 Plus V2 (2.5inch), DL385 Gen10 Plus V2 Base (2.5inch), DL385 Gen10 Plus V2 Entry (2.5inch)

HPE SimpliVity 325 Gen10 Plus V2 Node (2.5inch)

PLEASE NOTE: Refurbished products have a 90-day warranty period, unless stated otherwise.
