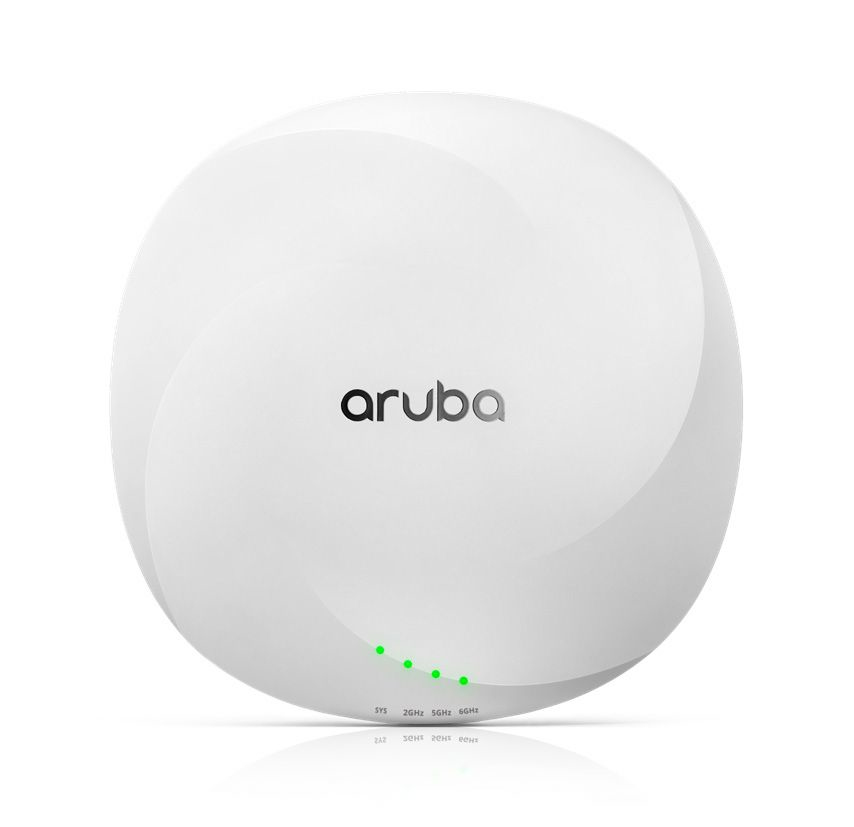

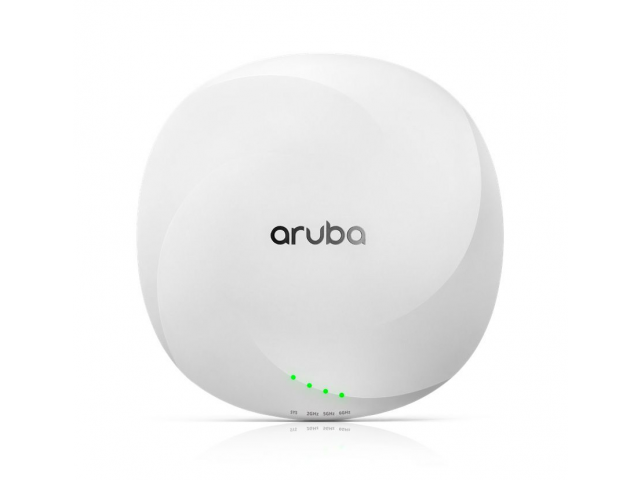

HPE Aruba Networking AP-635 2400 Mbit/s White Power over Ethernet (PoE)
- Aruba AP-635 (RW) Tri-radio 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus AP
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
For enterprises who need more wireless capacity and wider channels, Aruba 630 Series Campus APs are designed to take advantage of the 6 GHz band via three dedicated radios. By using the 6 GHz band, capacity is more than doubled – so you can meet growing demand due to bandwidth-hungry
video, increasing numbers of client and IoT devices and growth in cloud. Unique to Aruba, the 630 Series includes ultra tri-band filtering and dual 2.5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity
Specifications
| Weight & dimensions | |
|---|---|
| Weight | 1.3 kg |
| Height | 51 mm |
| Depth | 220 mm |
| Width | 220 mm |
| Operational conditions | |
| Storage relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Algemeen | |
| Productfamilie | Aruba Networking |
| Features | |
| GPS (satellite) | Yes |
| GLONASS | Yes |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| 6 GHz | Yes |
| Design | |
| Product colour | White |
| Placement | Ceiling |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Antenna | |
| Antenna gain level (max) | 7 dBi |
| Antenna features | Integrated antenna |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Security | |
| Security algorithms | WPA, WPA2, WPA3 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Performance | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| MIMO | Yes |
| Frequency band | 2.4/5/6 GHz |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Data transfer rate (max) | 2400 Mbit/s |
