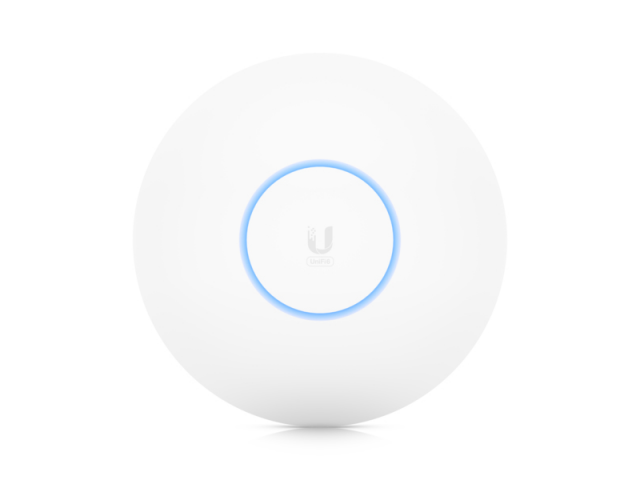

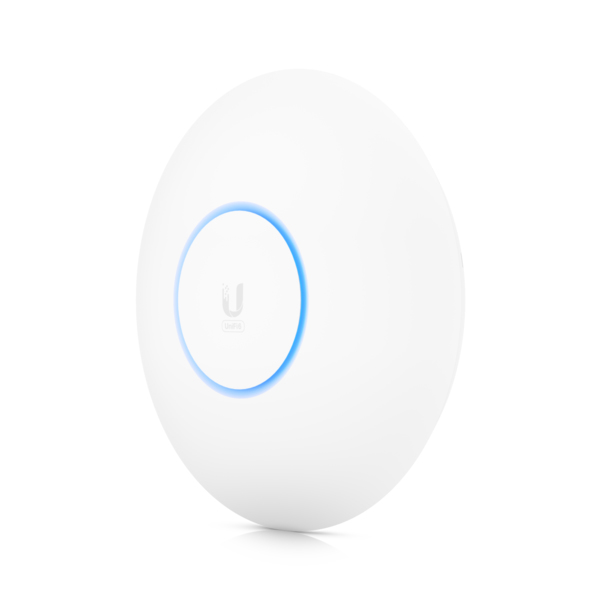

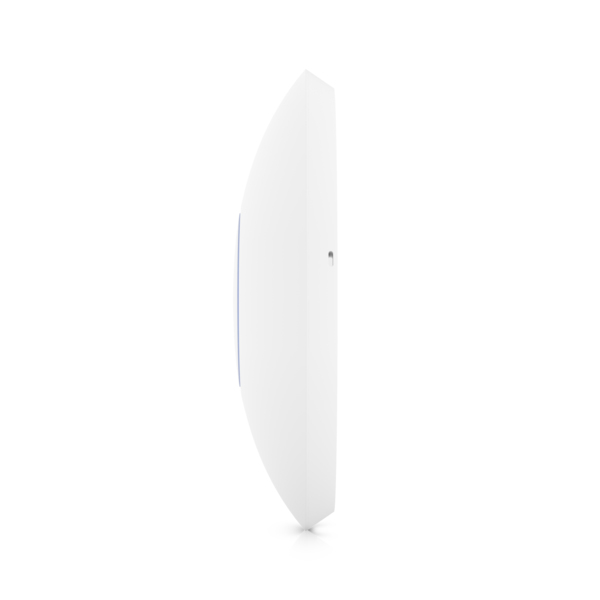

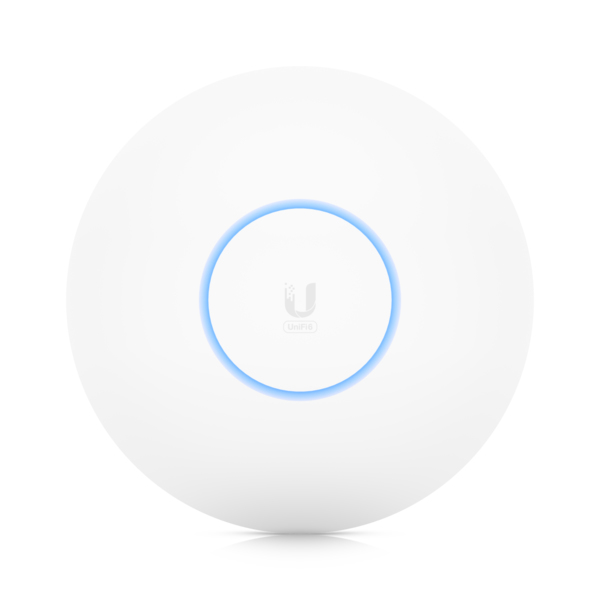

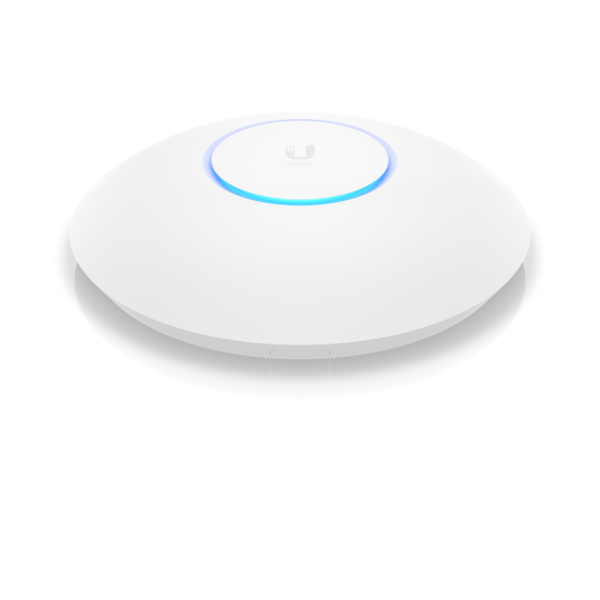

Ubiquiti UniFi 6 Long-Range
- WiFi 6
- 2.4 / 5 GHz
- MU-MIMO
- 3.0 Gbps
- 1x Gigabit Ethernet
- PoE
- IP54
- Ø220 x 48 mm
- White
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.
It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).
Specifications
| Packaging content | |
|---|---|

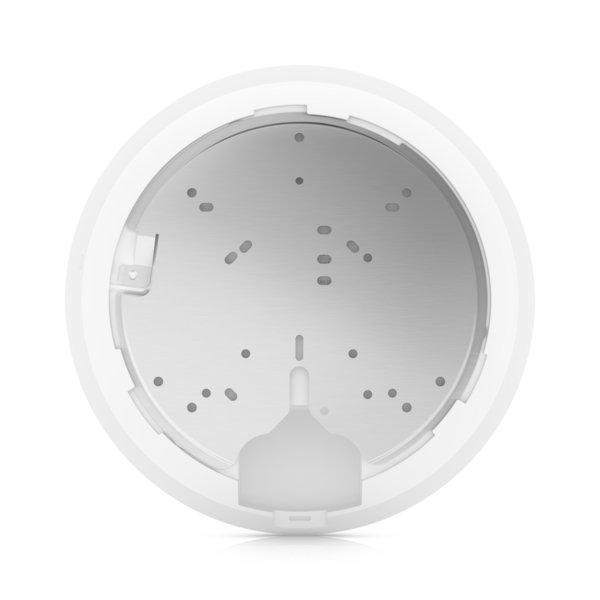

| Mounting kit | Yes |
| Weight & dimensions | |
| Weight | 800 g |
| Height | 220 mm |
| Depth | 48 mm |
| Width | 220 mm |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Features | |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 600 Mbit/s |
| Design | |
| Product colour | White |
| LED indicators | Yes |
| International Protection (IP) code | IP54 |
| Placement | Ceiling, Wall |
| Housing material | Plastic |
| Power | |
| AC input voltage | 44 - 57 V |
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 16.5 W |
| Antenna | |
| Antenna gain level (max) | 5.5 dBi |
| Antenna type | Internal |
| Security | |
| Security algorithms | WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Ports & interfaces | |

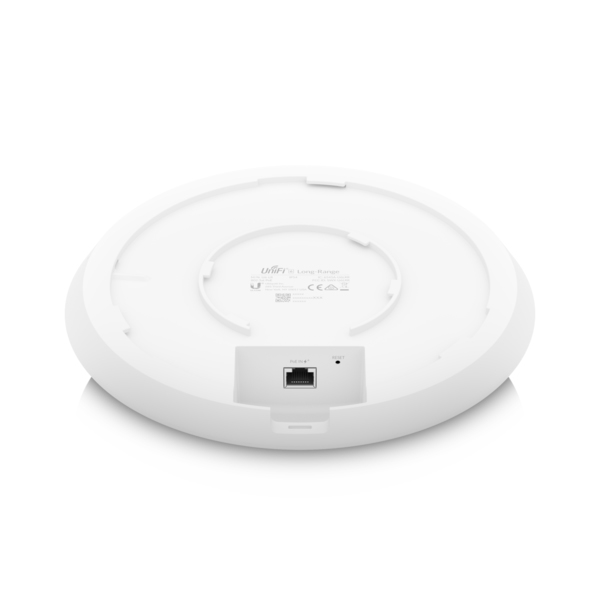

| Ethernet LAN (RJ-45) ports | 1 |
| Protocols | |
| Supported network protocols | 802.11Ax, 802.11Ac, 802.11n, 802.11g, 802.11b, 802.11A, 802.3at, 802.1Q |
| Performance | |
| Certification | CE, FCC, IC |
| Reset button | Yes |
| Processor frequency | 1.35 MHz |
| Built-in processor | Yes |
| Quality of Service (QoS) support | Yes |
| VLAN support | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Number of users | 300 user(s) |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transfer rate (max) | 3000 Mbit/s |
