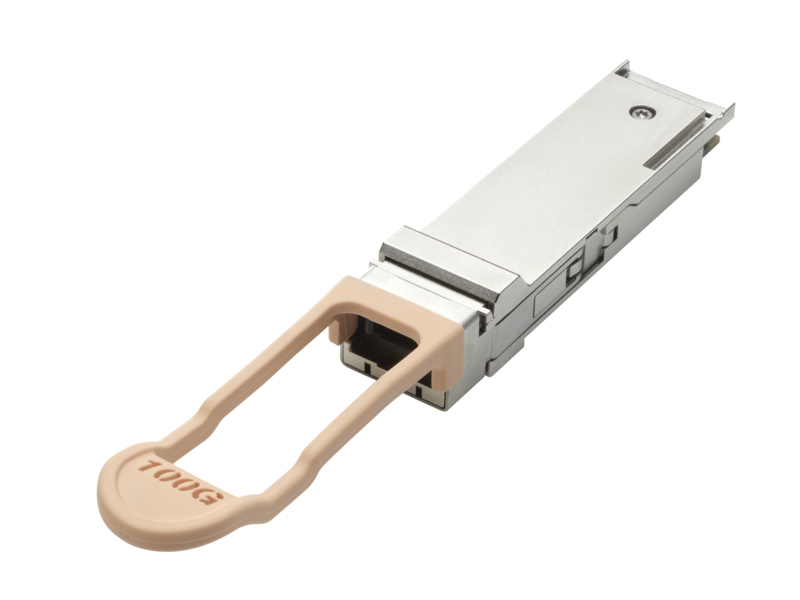

HPE 100Gb QSFP28 MPO SR4 100m network transceiver module Fiber optic 100000 Mbit/s 850 nm
- 100Gb QSFP28 MPO SR4 100m Transceiver
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
HPE 100Gb QSFP28 MPO SR4 100m. SFP transceiver type: Fiber optic, Maximum data transfer rate: 100000 Mbit/s, Interface type: QSFP28. Power consumption (typical): 3.5 W. Width: 72.7 mm, Depth: 8.5 mm, Height: 18.4 mm
What if you could deploy 100 Gb transceiver connections with an overall reduction of cost per bit? The HPE 100Gb QSFP28 Transceiver is designed to meet the increasing demand of growing bandwidth in the data center. The 100 Gb performance allows a reduction of the port density and number of hardware components required to achieve this higher speed. With reduction of cost per bit, The HPE 100Gb QSFP28 Transceiver can significantly reduce Capex and Opex spending on interconnect connections. When the fiber optic cable is attached via a standard MPO connector, up to 100m connection can be conducted via multi-mode fibers.
Features
- The HPE 100Gb QSFP28 MPO SR4 100m Transceiver has four optical lanes in each direction, allowing each to operate at 25 Gb.
- MPO connector for plugging in multi-mode fiber cables.
- Maximum link length of 70 m on OM3 and 100 m on OM4 multimode fiber at 100 Gb/s.
- Bit-error Rate (BER) lower than 10-15.
- 3.3 V power supply.
Specifications
| Weight & dimensions | |
|---|---|
| Weight | 36.3 g |
| Height | 18.4 mm |
| Depth | 8.5 mm |
| Width | 72.7 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Power | |
| Power consumption (typical) | 3.5 W |
| Performance | |
| Harmonized System (HS) code | 85369010 |
| Maximum transfer distance | 100 m |
| Wavelength | 850 nm |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SR4 |
| SFP transceiver type | Fiber optic |
| Networking | |
| Fiber optic connector | MPO |
| Interface type | QSFP28 |
| Data transfer rate (max) | 100000 Mbit/s |
