HPE BladeSystem c-Class 4x10G QSFP+ MPO SR4 100m network transceiver module Fiber optic 40000 Mbit/s QSFP+ 850 nm
- BladeSystem c-Class 4x10G QSFP+ MPO SR4 100m Transceiver

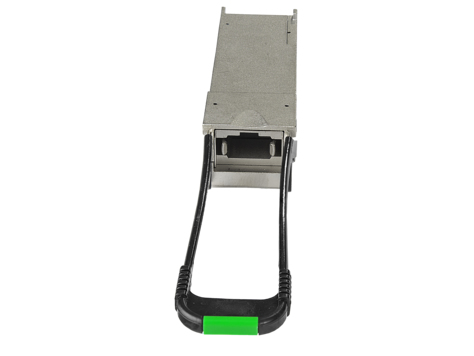

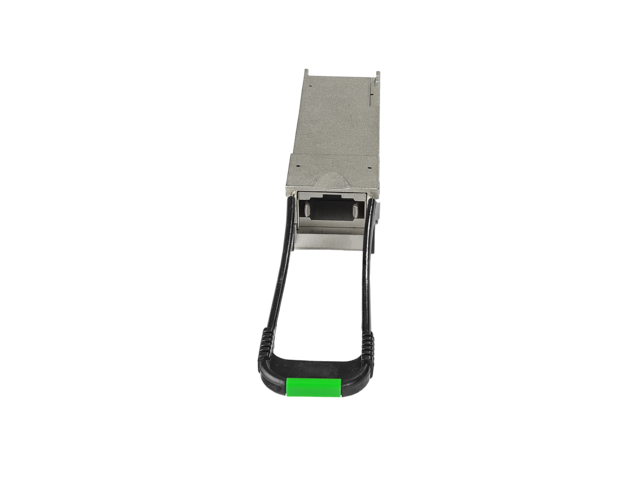

- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Do you need high-performance QSFP+ transceivers for your BladeSystem? The HP BladeSystem c-Class QSFP+ Transceivers deliver a full-duplex optical module with four independent transmit and receive channels supporting data rates up to 4x10 Gb/s for high-density applications and improving performance.
What's new
- Supports 40 Gb connection.
- Provides fast data transfer rate using MMF or SMF fibers.
- Can be used either for 40GbE or for aggregating 4x 10GbE links.
Specifications
| Certificates | |
|---|---|
| Certification | MSA |
| Weight & dimensions | |
| Weight | 35 g |
| Performance | |
| Duplex system | Full |
| Maximum transfer distance | 100 m |
| Hot-Plug support | Yes |
| Wavelength | 850 nm |
| Fiber cable diameters supported | 50/125 µm |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SR4 |
| SFP transceiver type | Fiber optic |
| Networking | |
| Fiber optic connector | MPO |
| Interface type | QSFP+ |
| Data transfer rate (max) | 40000 Mbit/s |
