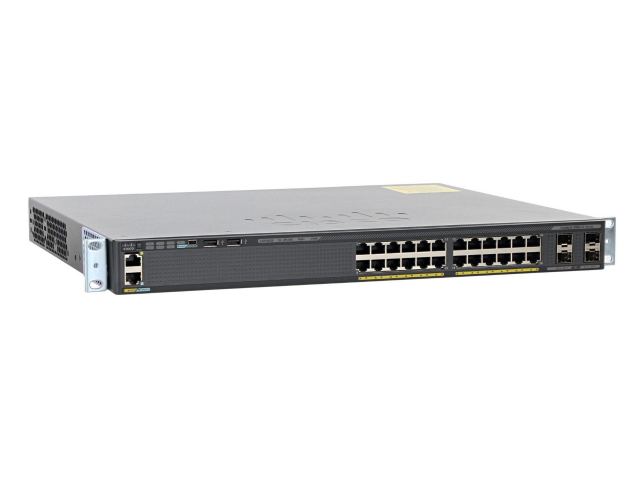

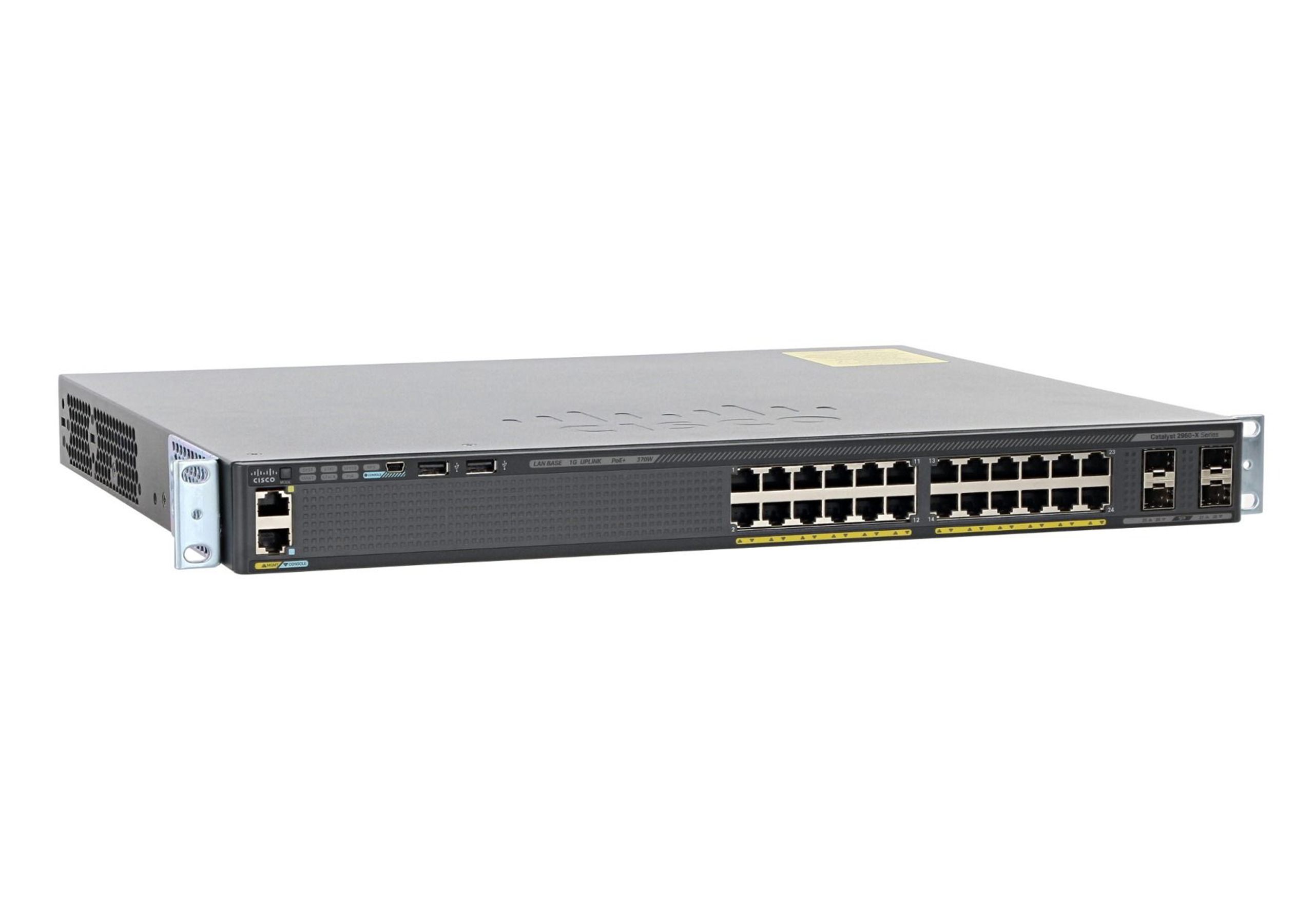

Cisco Small Business Catalyst 2960X-24PS-L Network Switch, 24 Gigabit Ethernet Ports, 370W PoE Budget, four 1 G SFP Uplink Ports
this product is refurbished
€ 75,00 Excl. VAT
Available immediately
Part number: WS-C2960X-24PS-L
- Catalyst 2960X-24PS-L Network Switch
- 24 Gigabit Ethernet Ports
- 370W PoE Budget
- four 1 G SFP Uplink Ports
- Enhanced Limited Lifetime Warranty (WS-C2960X-24PS-L)
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
The Cisco Catalyst 2960X-24PS-L Network Switch is a fixed-configuration, stackable Gigabit Ethernet switch that provides enterprise-class access for campus and branch applications. This Ethernet switch operates on Cisco IOS Software and supports simple device and network management. It offers advanced Layer 2 and Layer 3 features as well as optional PoE+ power. The switches deliver enhanced application visibility, network reliability and network resiliency.
PLEASE NOTE: Refurbished products have a 90-day warranty period, unless stated otherwise.
Specifications
| Other features | |
|---|---|
| Power LED | Yes |
| Country of origin | China |
| Logistics data | |
| Quantity per master carton | 1 pc(s) |
| Packaging content | |
| Cables included | AC |
| User guide | Yes |
| Packaging data | |
| Package weight | 7.07 kg |
| Package height | 147.6 mm |
| Package depth | 549.4 mm |
| Package width | 469.9 mm |
| Weight & dimensions | |
| Weight | 5.8 kg |
| Height | 45 mm |
| Depth | 368 mm |
| Width | 445 mm |
| Operational conditions | |
| Non-operating altitude | 0 - 4000 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | -5 - 40 °C |
| Algemeen | |
| Productfamilie | Small Business |
| Serie producten | Catalyst 2960 |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Input current | 5 A |
| Number of power supply units | 1 |
| Plug type | Type C |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power consumption (typical) | 49 W |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Mean time between failures (MTBF) | 324280 h |
| Flash memory | 128 MB |
| Noise level | 39 dB |
| Auto-negotiation | Yes |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Processor frequency | 600 MHz |
| Processor model | AppliedMicro APM8639 |
| Built-in processor | Yes |
| Physical stacking (units) | 8 |
| Design | |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
| LED indicators | Yes |
| Product colour | Black |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Protocols | |
| Switching protocols | UDP, TCP, RADIUS/TACACS+ |
| Management protocols | SNMPv3 |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, SNMP, SSH |
| Access Control List (ACL) | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Access Control List (ACL) rules | 3 |
| DHCP features | DHCP server |
| Multicast features | |
| Number of multicast groups filtered | 1000 |
| Multicast support | Yes |
| Virtual LAN features | |
| Number of VLANs | 1023 |
| VLAN support | Yes |
| Data transmission | |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Number of static routes | 1000 |
| Number of queues | 8 |
| Throughput | 71.4 Mpps |
| Switching capacity | 216 Gbit/s |
| MAC address table | 16000 entries |
| Networking | |
| Virtual LAN features | Private VLAN |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Console port | RJ-45 |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Management features | |
| Web-based management | Yes |
| MIB support | Y |
| ARP inspection | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
