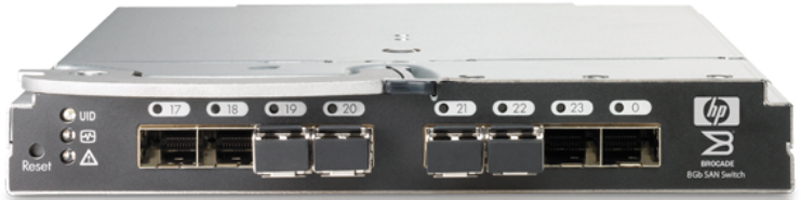

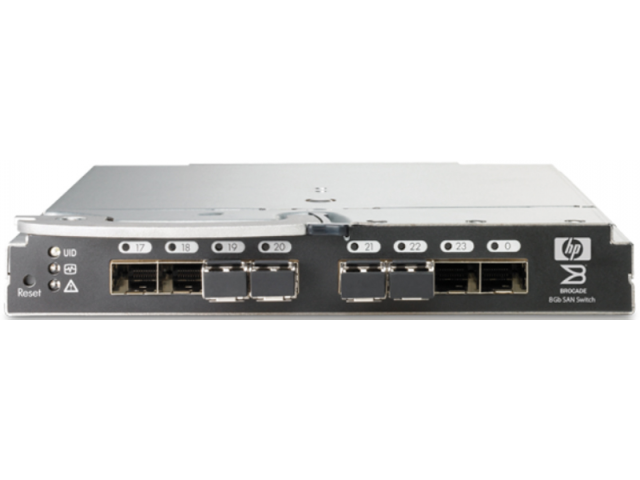

HPE AJ821A network switch module
- 8/24 SAN Switch Base
- 8Gb
- SFP
- SFP+
- 1.81kg
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
HPE AJ821A. Switching capacity: 384 Gbit/s, Data transfer rate: 8 Gbit/s. Dimensions (WxDxH): 381 x 298.5 x 85.9 mm, Weight: 1.81 kg
The Brocade 8Gb SAN Switch for HP BladeSystem c-Class delivers an easy to manage embedded Fibre Channel switch with 8 Gbps performance. The Brocade 8Gb SAN Switch hot-plugs into the back of the HP BladeSystem c-Class Enclosure. The integrated design frees up rack space, enables shared power and cooling, and reduces cabling and small form-factor pluggables. Enhanced trunking support with external switches provides higher bandwidth to enable demanding applications such as server virtualization. New features in the Power Pack+ option enable you to manage data flow to maintain optimized application performance. The 12 or 24 auto-sensing ports support lower bandwidth components for investment protection and an upgrade license enables you to ‘pay as you grow’. The Brocade 8Gb SAN Switch saves space and cost, significantly simplifies the SAN environment, enables easier deployment and management, and delivers the performance required for emerging higher throughput applications.
Warranty: 1-1-1) Hardware One-year on-site normal business hours, next business day response, installation not included.
Specifications
| Other features | |
|---|---|
| SFP/SFP+ slots quantity | 4 |
| Weight & dimensions | |
| Dimensions (WxDxH) | 381 x 298.5 x 85.9 mm |
| Weight | 1.81 kg |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Ports & interfaces | |
| SFP+ module slots quantity | 8 |
| Installed SFP+ modules quantity | 4 |
| Data transmission | |
| Data transfer rate | 8 Gbit/s |
| Switching capacity | 384 Gbit/s |
| Networking | |
| Full duplex | Y |
