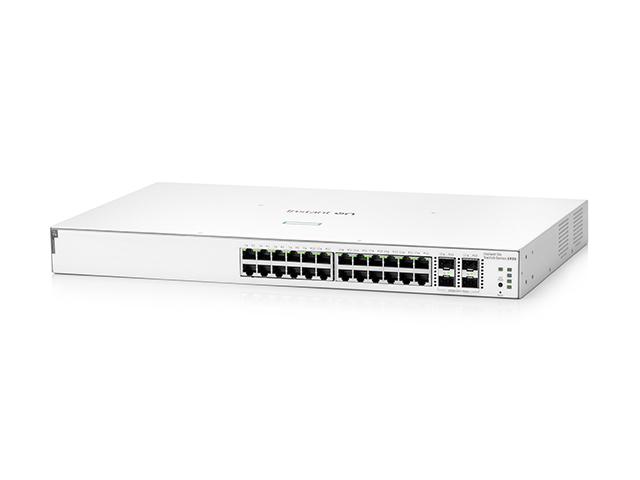

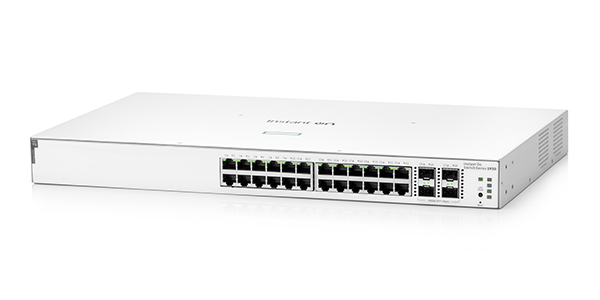

    HPE Aruba Networking Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Managed L2+ Gigabit Ethernet (10/100/1000) Power over E

    € 312,75 Excl. VAT
    2-3 working days
    Part number: JL683B#ABB
    • Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch
    • Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.

    Disclaimer:
    Product photos and specifications are made available by Universal Databases and are often based on new products.
    When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).

    Please read the product description carefully and contact us if you have any questions.


    Description

    The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.

    Features

    Simplify Network Deployment and Management for Small Organizations
    - The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment.
    - The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+).
    - The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
    - The Aruba Instant On 1930 switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

    Keep Your Business Protected with Integrated Security Features
    - The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
    - Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
    - Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
    - Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.

    Deliver High Perfomance
    - The Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
    - 8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
    - The 24- and 48-port models include 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances.
    - The switch series is covered by the Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.


    Specifications

    Weight & dimensions
    Weight 3.49 kg
    Height 43.9 mm
    Depth 264.7 mm
    Width 442.5 mm
    Operational conditions
    Operating altitude 0 - 3048 m
    Storage relative humidity (H-H) 15 - 95%
    Operating relative humidity (H-H) 15 - 95%
    Storage temperature (T-T) -40 - 70 °C
    Operating temperature (T-T) 0 - 40 °C
    Algemeen
    Productfamilie Aruba Networking
    Power over Ethernet (PoE)
    Total Power over Ethernet (PoE) budget 195 W
    Power over Ethernet (PoE) Yes
    Power
    AC input frequency 50 - 60 Hz
    AC input voltage 100 - 240 V
    Power supply included Yes
    Power consumption (max) 280 W
    Power source AC
    Performance
    Flash memory 256 MB
    Packet buffer memory 1.5 MB
    Memory type SDRAM / Flash
    Internal memory 512 MB
    Processor frequency 800 MHz
    Processor model ARM Cortex-A9
    Built-in processor Yes
    Design
    Product colour White
    Form factor 1U
    Stackable No
    Rack mounting Yes
    Security
    SSH/SSL support Yes
    IGMP snooping Yes
    Access Control List (ACL) Yes
    DHCP features DHCP client
    Virtual LAN features
    VLAN support Yes
    Data transmission
    Jumbo frames support Yes
    Latency (10 Gbps) 1.3 µs
    Latency (1 Gbps) 2.4 µs
    Latency (10-100 Mbps) 4.7 µs
    Throughput 95.23 Mpps
    Switching capacity 128 Gbit/s
    MAC address table 16000 entries
    Networking
    10G support Yes
    Flow control support Yes
    Port mirroring Yes
    Link aggregation Yes
    Auto MDI/MDI-X Yes
    Spanning tree protocol Yes
    Auto-sensing Yes
    Rate limiting Yes
    Full duplex Yes
    Networking standards IEEE 802.1D, IEEE 802.1Qaz, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    Ports & interfaces
    SFP+ module slots quantity 4
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Basic switching RJ-45 Ethernet ports quantity 24
    Management features
    Web-based management Yes
    Cloud-managed Yes
    Quality of Service (QoS) support Yes
    Switch layer L2+
    Switch type Managed
