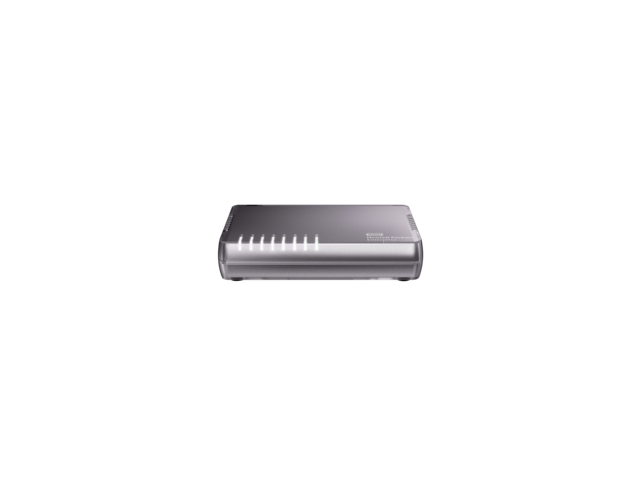

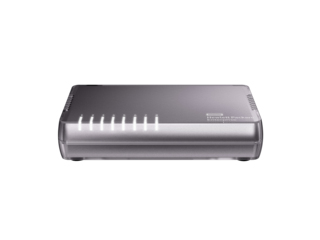

HPE OfficeConnect 1405 8G v3 Unmanaged L2 Gigabit Ethernet (10/100/1000) Grey
- OfficeConnect 1405 8G v3 Switch
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
The HPE OfficeConnect 1405 Switch Series is a plug-and-play unmanaged fixed-port Layer 2 switch designed for small offices. These switches are preconfigured with connections using low-cost Ethernet copper cabling. They are Class B certified, energy efficient and quiet. They support administration-friendly features such as auto-negotiation. Designed for high reliability, long life, and low power consumption, they are ideal for businesses concerned with total cost of ownership.
What's new
- New entry level 5G- and 8G- port switches for small offices.
- Plug and play, no configuration required.
- Quality of Service (QoS) and flow control for improved network efficiency.
- Energy Efficient Ethernet for low power consumption.
- 3 year warranty with 24X7 phone support for 90 days.
Features
Ease of Use
- The HPE OfficeConnect 1405 Switch Series offers unmanaged plug-and-play simplicity.
- A comprehensive LED display with per-port indicators provides an at-a-glance view of status, activity, speed, and full duplex operation.
- Flow control helps to provide reliable communications during full-duplex operation.
- Connectivity and Performance
- The HPE OfficeConnect 1405 Switch Series with Auto-MDIX automatically adjusts to straight-through or crossover cables on all 10/100 and 10/100/1000 ports.
- Jumbo packet support for Gigabit Ethernet ports only offers up to 9216-byte frame size to improve performance of larger data transfers.
Half/Full duplex auto-negotiating capability on every port doubles the throughput of every port.
Quality of Service (QoS)
- The HPE OfficeConnect 1405 Switch Series has IEEE 802.1p prioritization delivering data to devices based on priority and type of traffic.
- The switches support energy efficient Ethernet.
- Fanless design: enables quiet operation for deployment in open spaces (selected models).
- Green initiative support: provides support for RoHS and WEEE regulations.
- Energy savings: utilizes Energy Efficient Ethernet (EEE) standard (IEEE 802.3az) and idle-port powerdown for energy savings (v2 only).
Specifications
| Weight & dimensions | |
|---|---|
| Weight | 230 g |
| Height | 35.6 mm |
| Depth | 91.4 mm |
| Width | 154.9 mm |
| Operational conditions | |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 4.5 W |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Packet buffer memory | 1.5 MB |
| Design | |
| Product colour | Grey |
| Stackable | No |
| Rack mounting | No |
| Data transmission | |
| Latency (1 Gbps) | 2.6 µs |
| Latency (10-100 Mbps) | 3 µs |
| Throughput | 11.8 Mpps |
| Switching capacity | 16 Gbit/s |
| MAC address table | 8192 entries |
| Networking | |
| 10G support | No |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Unmanaged |
