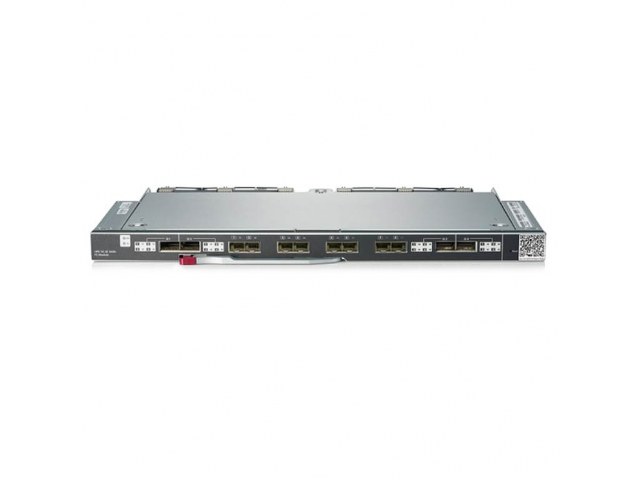

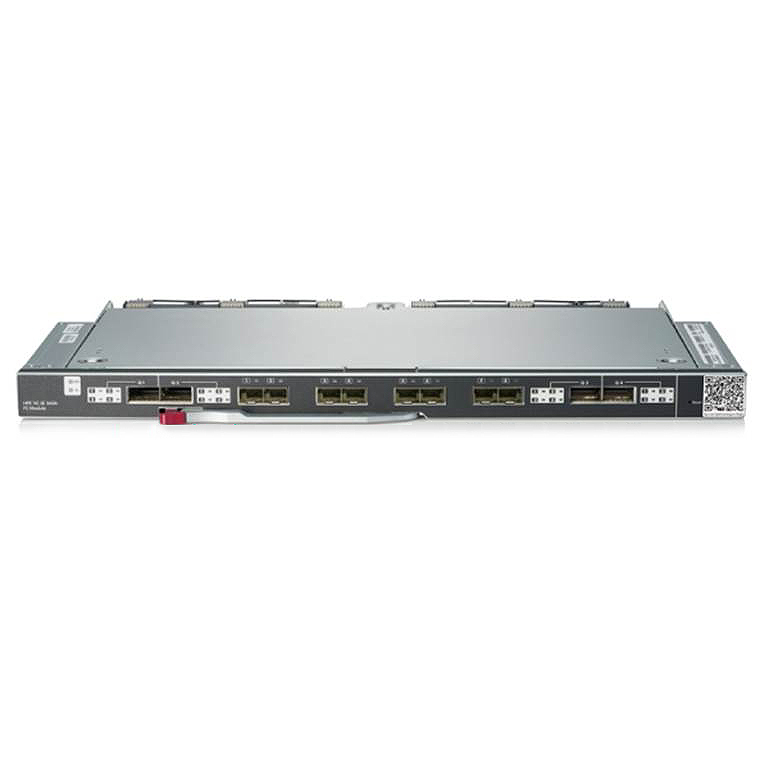

HPE Virtual Connect SE 16Gb FC network switch module
- Virtual Connect SE 16Gb FC Module for HPE Synergy
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
HPE Virtual Connect SE 16Gb FC. Fiber optic connector: QSFP+, SFP+. Data transfer rate: 16 Gbit/s. Dimensions (WxDxH): 429.72 x 280.7 x 27.48 mm, Weight: 1.44 kg
The HPE Virtual Connect SE 16Gb FC Module for HPE Synergy is a Storage Area Network (SAN) interconnect with a wire-once change-ready technology. The Fibre Channel (FC) module in conjunction with Synergy composer powered by HPE OneView allows workloads to be moved or managed without modifying the network. HPE OneView provides an intuitive management console for seamless connectivity between virtualized Synergy Compute Modules 16Gb FC SAN fabrics.
For the best-in-class enterprise datacenter performance environments, the HPE VC SE 16Gb FC module or the alternative, Brocade 16Gb FC SAN Switch Module for HPE Synergy, are the best choices for operating systems and applications demanding low-latency high I/O performance, i.e. SSD storage. No other server enclosure technology (iSCSI, Ethernet, or FCoE) on the market can guarantee up to 384Gb/s of bandwidth. The unique QSFP ports not only significantly simplify cabling infrastructure, reduces cabling from four to one, but also helps reduce power 2.5x attributed to optics transceivers.
If deployment costs are a concern, by adopting the Synergy frame and Gen 5 16Gb FC technology, you can reduce costs and simplify connections to SANs, consolidate your network connections and enable administrators to add, replace and recover compute modules resources on-the-fly. The integrated Synergy design frees up rack space, reduces power and cooling requirements.
The HPE Virtual Connect SE 16Gb FC Module for HPE Synergy is protected by HPE Services 3-Years Next Business Day 9x5 Hardware Support.
Specifications
| Weight & dimensions | |
|---|---|
| Dimensions (WxDxH) | 429.72 x 280.7 x 27.48 mm |
| Weight | 1.44 kg |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
| Non-operating altitude | 0 - 9144 m |
| Ports & interfaces | |
| SFP+ module slots quantity | 8 |
| Fiber ports quantity | 12 |
| Data transmission | |
| Data transfer rate | 16 Gbit/s |
| Optical fiber | |
| Fiber optic connector | QSFP+, SFP+ |
| Networking | |
| Full duplex | Yes |
