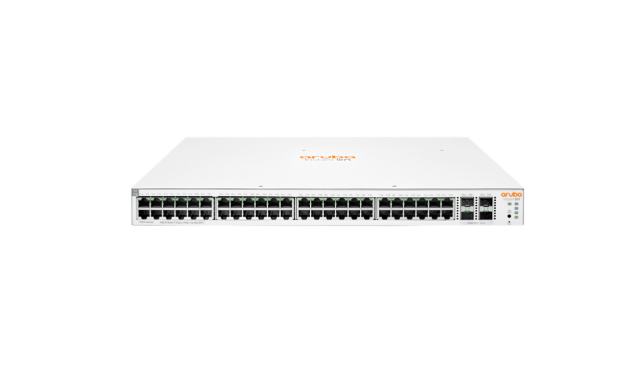

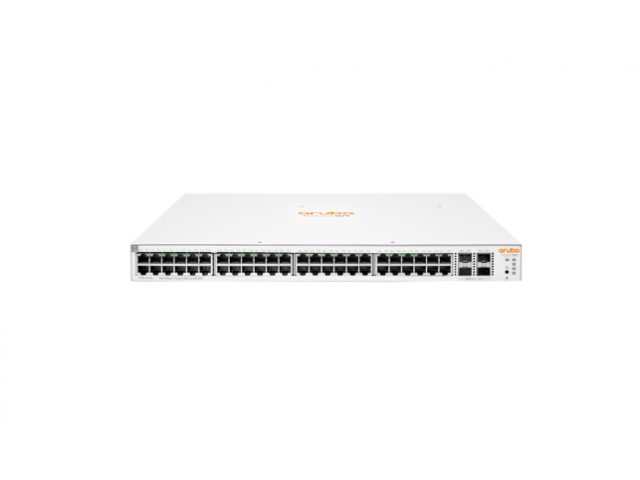

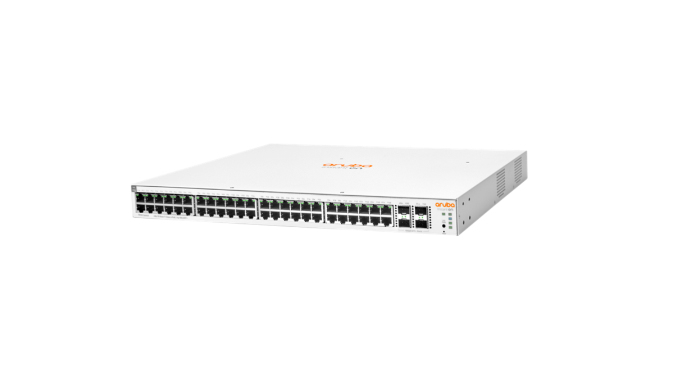

HPE Aruba Networking Aruba Instant On 1930 Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
- Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.
Simplify Network Deployment and Management for Small Organizations
The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment.
The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+).
The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
The Aruba Instant On 1930 switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
Keep Your Business Protected with Integrated Security Features
The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.
Deliver High Perfomance
The Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
The 24- and 48-port models include 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances.
The switch series is covered by the Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.
Specifications
| Weight & dimensions | |
|---|---|
| Weight | 4.59 kg |
| Height | 43.9 mm |
| Depth | 322.6 mm |
| Width | 442.5 mm |
| Operational conditions | |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Algemeen | |
| Productfamilie | Aruba Networking |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power consumption (max) | 520 W |
| Performance | |
| Flash memory | 256 MB |
| Packet buffer memory | 1.5 MB |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Processor frequency | 800 MHz |
| Processor model | ARM Cortex-A9 |
| Design | |
| Product colour | White |
| Form factor | 1U |
| Stackable | No |
| Rack mounting | Yes |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Virtual LAN features | |
| Number of VLANs | 256 |
| VLAN support | Yes |
| Data transmission | |
| Jumbo frames support | Yes |
| Latency (10 Gbps) | 1.2 µs |
| Latency (1 Gbps) | 2.2 µs |
| Latency (10-100 Mbps) | 4.5 µs |
| Throughput | 130.95 Mpps |
| Switching capacity | 176 Gbit/s |
| MAC address table | 16000 entries |
| Networking | |
| 10G support | Yes |
| Flow control support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-sensing | Yes |
| Rate limiting | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
