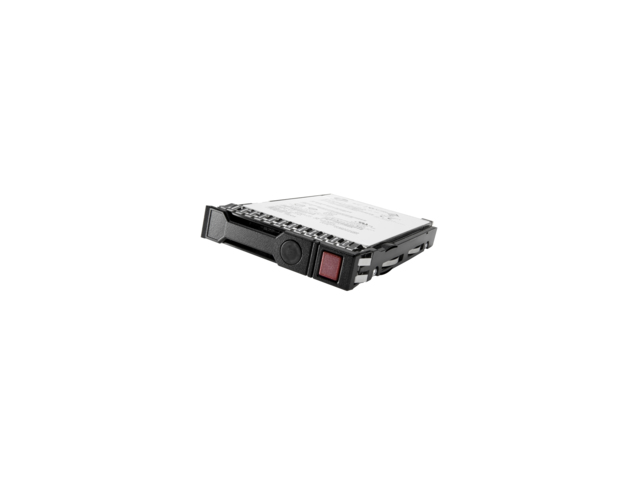

HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC DS SSD - G8 G9 G10

Omschrijving

MPN: 872374-B21

Option Part Number: 872374-B21
Spare Part Number: 872505-001
Model Number: MO000400JWFWN
Assembly Number: 872373-001

General
Device Type: Solid State Drive - Hot-Swap
Capacity: 400 GB
Workload Type: Mixed Use
Interface Type: SAS 12Gbps
Form Factor: 2.5 inch SFF
Plug Type: Hot Plug
Carrier Type: Smart Carrier
Flash Type: MLC
Byte per Sector: 512
Features: Digitally Signed Firmware (DS)
Bundled with: HPE SmartDrive carrier
Height: 15 mm

Performance
Endurance DWPD: 3.0
Drive Transfer Rate: 1.2 GBps (external)
MAX Seq. Reads Throughput (MiB/s): 1075
MAX Seq. Writes Throughput (MiB/s): 1025
Random Read Average Latency uSec (4KiB, Q1): 120
Random Write Average Latency uSec (4KiB, Q1): 48
Random Read IOPS (4KiB, Q=16): 120000
Random Write IOPS (4KiB, Q=16): 80000
MAX Random Read IOPS (4KiB): 185000@Q32
MAX Random Write IOPS (4KiB): 80000@Q16
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 105000
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 87500

Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF

Power Requirement
Power Idle Time: 3.82 Watt
Power Random Read: 4.33 Watt
Power Random Write: 4.33 Watt
Power Sequential Read: 6.41 Watt
Power Sequential Write: 8.42 Watt
Power Random R/W: 4.33 Watt

Compatibility Information
Designed for

HPE ProLiant DL Series: DL120 Gen9 (2.5 inch), DL120 Gen9 Entry (2.5 inch), DL160 Gen9 (2.5 inch), DL160 Gen9 Base (2.5 inch), DL160 Gen9 Entry (2.5 inch), DL160 Gen9 Performance (2.5 inch), DL20 Gen9 Solution (2.5 inch), DL360 Gen10 (2.5 inch), DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 High Performance (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (2.5 inch), DL380 Gen9 Special (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL560 Gen10 (2.5 inch), DL560 Gen10 Base (2.5 inch), DL560 Gen10 Entry (2.5 inch), DL560 Gen10 Performance (2.5 inch), DL560 Gen9 (2.5 inch), DL560 Gen9 Base (2.5 inch), DL560 Gen9 Entry (2.5 inch), DL560 Gen9 Performance (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch) Servers

HPE ProLiant ML Series: ML110 Gen10 Solution (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch), ML350 Gen9 (2.5 inch), ML350 Gen9 Base (2.5 inch), ML350 Gen9 Entry (2.5 inch), ML350 Gen9 Performance (2.5 inch) Servers

HPE ProLiant WS Series: WS460c Gen9 (2.5 inch), WS460c Gen9 Graphics (2.5 inch), WS460c Gen9 Graphics Expansion (2.5 inch) Servers

HPE ProLiant XL Series: XL190r Gen9 (2.5 inch), XL450 Gen10 (2.5 inch) Servers
