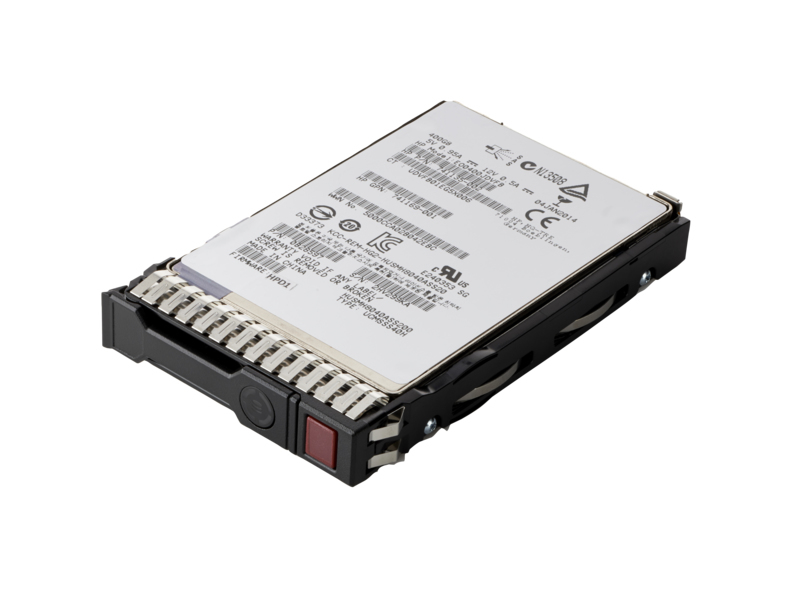

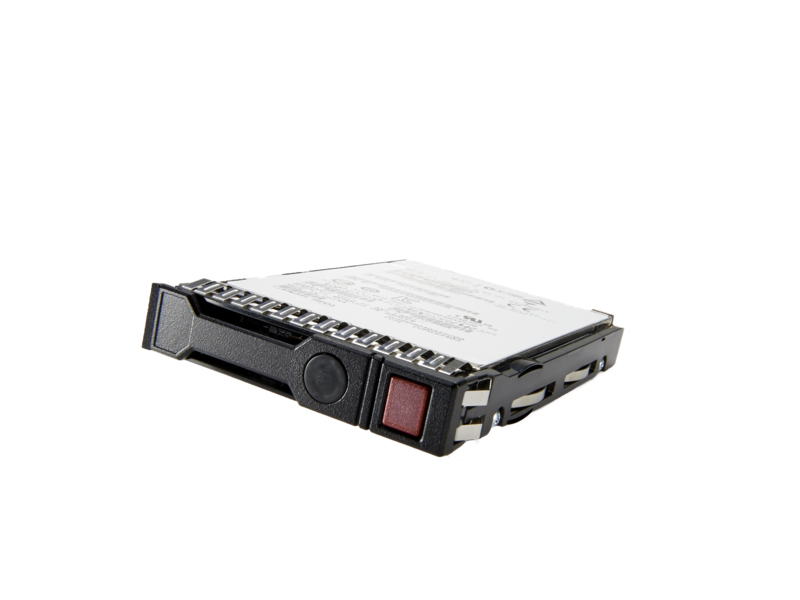

P04527-B21NL HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC DS SSD G9 G10 - Zero Hours

Omschrijving

MPN: P04527-B21

Option Part Number: P04527-B21
Spare Part Number: P06577-001
Model Number: MO000800JWTBR
Assembly Number: P04174-002

General
Device Type: Solid State Drive - Hot-Swap
Capacity: 800 GB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
NAND Flash Memory Type: Triple-level cell (TLC)
Plug Type: Hot Pluggable
Connectivity Type: Dual
Carrier Type: Smart Carrier (SC)
Workload Type: Mixed Use
Bundled with: HPE SmartDrive Carrier (SC)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15.00 mm(0.60 inch)

Performance
30 Days Writes (TB): 4380
Endurance DWPD (Drive Writes Per Day): 3.00
Drive Transfer Rate: 12 GBps (external)
MAX Seq. Reads Throughput (MiB/s): 1075
MAX Seq. Writes Throughput (MiB/s): 1025
Random Read Average Latency uSec (4KiB,Q1): 126
Random Write Average Latency uSec (4KiB,Q1): 57
Random Read IOPS (4KiB, Q=16): 120000
Random Write IOPS (4KiB, Q=16): 90000
MAX Random Read IOPS (4KiB): 185000@Q32
MAX Random Write IOPS (4KiB): 90000@Q16
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 107000
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 92500

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption
Idle Time: 4.26 Watt
Random Read: 4.97 Watt
Random Write: 4.97 Watt
Sequential Read: 6.71 Watt
Sequential Write: 6.95 Watt
Random Read/Write: 4.97 Watt
Maximum: 6.71 Watt

Product Dimensions & Weight
Height: 5.00 inch (12.70 cm)
Width: 7.00 inch (17.78 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)

Compatibility Information

Designed for

HPE ProLiant DL Series: DL380 Gen10 (2.5 inch), Medium Solution with HPE ProLiant DL360 Gen10 (2.5 inch) DL180 Gen10 (2.5 inch), DL180 Gen10 Entry (2.5 inch), DL180 Gen10 SMB (2.5 inch), DL325 Gen10 (2.5 inch), DL325 Gen10 Base (2.5 inch), DL325 Gen10 Entry (2.5 inch), DL325 Gen10 Performance (2.5 inch), DL325 Gen10 Plus (2.5 inch), DL325 Gen10 Plus All-NVMe Flash Node for Qumulo (2.5 inch), DL325 Gen10 SMB Solution (2.5 inch), DL325 Gen10 Solution (2.5 inch), DL360 Gen10 All Flash Server for Weka (2.5 inch), DL360 Gen10 Compute Server for Cohesity DataPlatform (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Network Choice (2.5 inch), DL360 Gen10 Remote Office Branch Office Server for Cohesity DataPlatform (2.5 inch), DL360 Gen10 SMB (2.5 inch), DL360 Gen10 SMB Network Choice (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL380 Gen10 All Flash Server for Datera (2.5 inch), DL380 Gen10 Entry SMB (2.5 inch), DL380 Gen10 for Cohesity DataPlatform (2.5 inch), DL380 Gen10 for SAP HANA Compute Block (2.5 inch), DL380 Gen10 Hybrid Server for Datera (2.5 inch), DL380 Gen10 Network Choice (2.5 inch), DL380 Gen10 Network Choice for CTERA (2.5 inch), DL380 Gen10 Network Choice for SAP HANA Compute Block (2.5 inch), DL380 Gen10 Server for CTERA (2.5 inch), DL380 Gen10 SMB (2.5 inch), DL380 Gen10 SMB Networking Choice (2.5 inch), DL380 Gen10 Solution (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Plus (2.5 inch), DL385 Gen10 Plus Entry (2.5 inch), DL385 Gen10 SMB (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL388 Gen10 (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch), DX380 Gen10 (2.5 inch), DX560 Gen10 (2.5 inch)

HPE ProLiant ML Series: ML110 Gen10 Solution (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 High Performance (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 SMB (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Special Server (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch)
